Views: 214 Author: Site Editor Publish Time: 2025-07-17 Origin: Site
Motorized rollers are a cornerstone of modern conveyor systems, seamlessly driving product flow in warehouses, manufacturing lines, and distribution centers. But one question often arises: How much weight can a motorized roller carry?
The answer depends on a number of variables—roller diameter, material, shaft configuration, motor type, and application scenario. In this article, we’ll break down the capacity of motorized rollers in different contexts and answer commonly asked questions about their load-bearing capabilities.

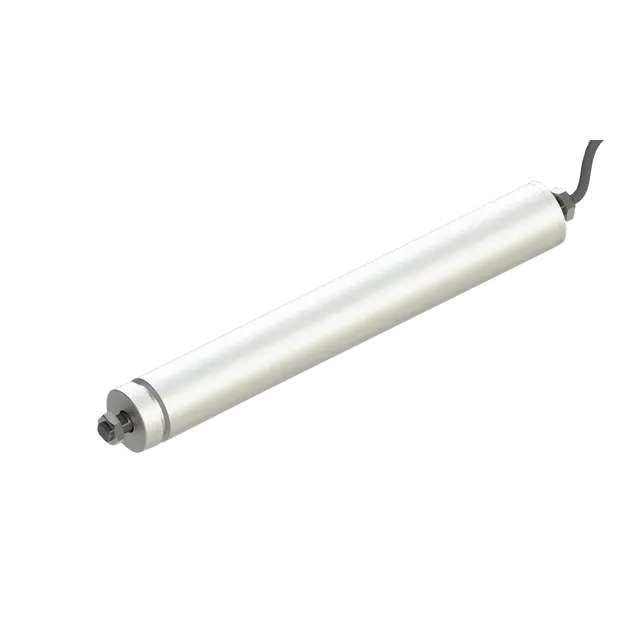

Motorized rollers, sometimes known as drum motors or powered rollers, are cylindrical conveyor components that integrate an electric motor within the roller body. They drive conveyor belts or rollers directly and are often used in automated material handling systems.
Unlike traditional conveyor drives, motorized rollers eliminate the need for external motors, gears, or chains. Their enclosed, compact design makes them ideal for space-saving, clean, and efficient conveyor layouts.
These rollers are engineered to move a wide variety of materials—from lightweight parcels to bulky pallets. But how much weight can they truly handle? Let’s delve into the influencing factors.
When it comes to load capacity, there’s no one-size-fits-all number for motorized rollers. Instead, their weight-bearing ability is defined by several core factors:
A larger roller diameter means greater surface area and structural strength, enabling the roller to carry heavier loads without deforming or buckling. Typical diameters range from 35mm to 89mm, with thicker walls offering higher resistance to bending.
For example, a 50mm roller might safely support 30–50 kg per roller, while an 89mm roller can easily support up to 100–150 kg, depending on length and mounting.
The internal shaft and bearing assembly determines how much axial and radial load a roller can withstand. Heavy-duty bearings paired with solid-core shafts ensure better load transfer and longer service life under high-pressure conditions.
The internal motor’s power, torque output, and rotational speed directly impact the dynamic load capacity. Higher torque motors can initiate and sustain movement even under heavy static loads.
For instance, a motorized roller with 24V DC power and a torque rating of 2 Nm may only move light packages, while a 48V DC unit with 10 Nm torque can support much heavier items across longer conveyor spans.
Although capacity varies by manufacturer and model, the following table offers a general overview of typical load-bearing ranges for motorized rollers based on common sizes and specs:
| Roller Diameter | Voltage | Torque (Nm) | Typical Load Capacity per Roller |
|---|---|---|---|
| 50 mm | 24V DC | 1–2 Nm | 20–50 kg |
| 60 mm | 24V/48V | 3–5 Nm | 50–80 kg |
| 80–89 mm | 48V DC | 5–10 Nm | 100–150 kg |
Note: These figures assume even load distribution and proper system alignment. Always consult technical data sheets and perform real-world testing before deploying.
Understanding the difference between static and dynamic loads is crucial for determining roller suitability.
Static Load refers to the weight applied when the conveyor is idle. Motorized rollers can often support more weight in static conditions.
Dynamic Load involves the stress and strain when the system is running. This includes inertia, acceleration forces, and vibration—all of which reduce the roller’s effective load capacity.
When calculating weight limits, engineers use a safety factor (commonly 1.5x to 2x) to account for dynamic stress. This ensures rollers operate reliably under peak loads and environmental conditions.
If you're planning a conveyor system with motorized rollers, consider the following when calculating total load:
Identify Maximum Product Weight: What is the heaviest item expected on the line?
Determine Number of Rollers in Contact: More rollers = better weight distribution.
Distribute Load Evenly: Uneven loading can lead to roller overstrain and early failure.
Check Power Supply Limitations: Ensure your motorized rollers match the control system’s voltage and current capacity.
Let’s say your system moves crates weighing up to 100 kg, and at any time 3 rollers support each crate.
Required load per roller = 100 kg / 3 = 33.3 kg
Select a roller rated for at least 35–40 kg (considering dynamic forces and safety margin).
In this case, a 60 mm, 48V roller with 3–5 Nm torque would be a good fit.
Technically, yes—but it’s not recommended. Repeated overloading causes motor overheating, mechanical wear, and system failure. Always operate within rated limits.
Signs of overloading include:
Unusual noise or vibration
Decreased conveyor speed
Roller temperature rising
Frequent motor shutdowns or tripping
Install sensors to monitor load and temperature for optimal safety.
No. The load capacity varies widely based on:
Voltage (24V vs 48V)
Motor design (brushless vs brushed)
Materials (aluminum vs stainless steel)
Mounting configuration
Always consult specification sheets or reach out to a technical engineer.
Motorized rollers are low maintenance, but periodic checks are essential:
Clean roller surfaces to prevent debris buildup
Inspect connectors and power wiring
Check for heat or vibration anomalies
Motorized rollers are used across industries, but high-weight applications typically include:
Pallet Conveyors: Where items often exceed 100 kg per unit
Automotive Assembly Lines: Handling bulky metal parts
E-commerce Fulfillment Centers: Where package weights vary drastically
Food and Beverage Distribution: For heavy crates or drums
In these environments, choosing the right roller is essential for avoiding downtime and ensuring safety.
So, how much weight can a motorized roller carry? Depending on its design, anywhere from 20 kg to 150+ kg per roller. But the exact number depends on multiple design parameters like roller size, motor power, shaft configuration, and application.
To ensure long-term reliability, always:
Use correct load calculations
Account for dynamic forces
Choose rollers rated with a sufficient safety margin
Monitor for signs of strain or overload
In the world of conveyor automation, selecting the right motorized roller isn’t just about specs—it’s about understanding the full system context. When matched properly, these powerful components drive efficiency, reduce noise, and support safe, smooth material flow in virtually any industry.
