Newly Designed motorized roller

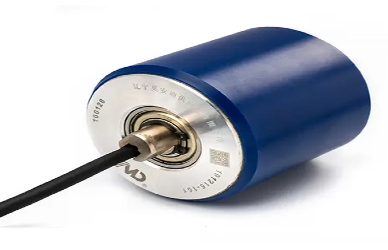

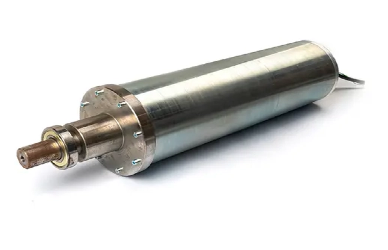

Motorized Roller

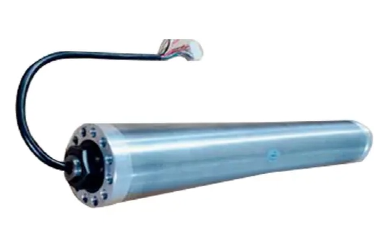

M&D Conveyor Servo motorized Roller – Precise Conveyance to drive the Future!
In modern industrial production, efficient and precise conveying systems are key to enhancing production efficiency and reducing operational costs. With years of deep expertise in the conveying industry, M&D has launched a new servo motorized roller, injecting robust power into your production lines through excellent technological innovation and reliable quality assurance.
Precise Controlling, Efficient Conveyance
The M&D conveyor servo motorized roller utilizes advanced servo control technology, enabling precise speed adjustment and position control to meet the demands of various complex conveying scenarios. Whether it's high-speed operation or low-speed precise positioning, it handles all with ease, ensuring stable and reliable material conveyance.
Compact Design, Space-Saving
The roller features a compact design, not only saving installation space but also significantly reducing the overall weight of the equipment, making it particularly suitable for automated production lines with limited space. Its modular structure design facilitates easy installation and maintenance, significantly reducing downtime and enhancing production efficiency.
Durable and Reliable, Long-Term Operation
The M&D servo motorized roller is made of high-quality materials and precision manufacturing processes, offering excellent wear resistance and corrosion resistance, ensuring stable long-term operation in harsh industrial environments. Whether in high temperature, high humidity, or dusty conditions, it maintains excellent performance, extending the equipment's service life.
Intelligent Integration, Easy Operation
Supports multiple communication protocols, easily integrating into existing automated systems for intelligent control. The user interface is simple and intuitive, allowing even beginners to quickly get started, significantly reducing operational difficulty and maintenance costs.
Energy-Efficient and Eco-Friendly, Reducing Energy Consumption
The M&D servo motorized roller adopts an energy-efficient design, ensuring strong power while significantly reducing energy consumption, helping enterprises achieve green production goals and reduce carbon emissions.
Motorized Roller Applications

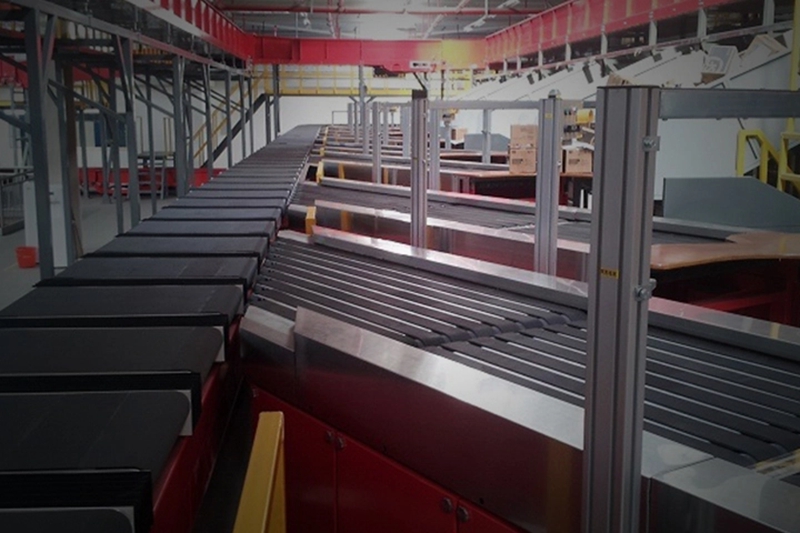

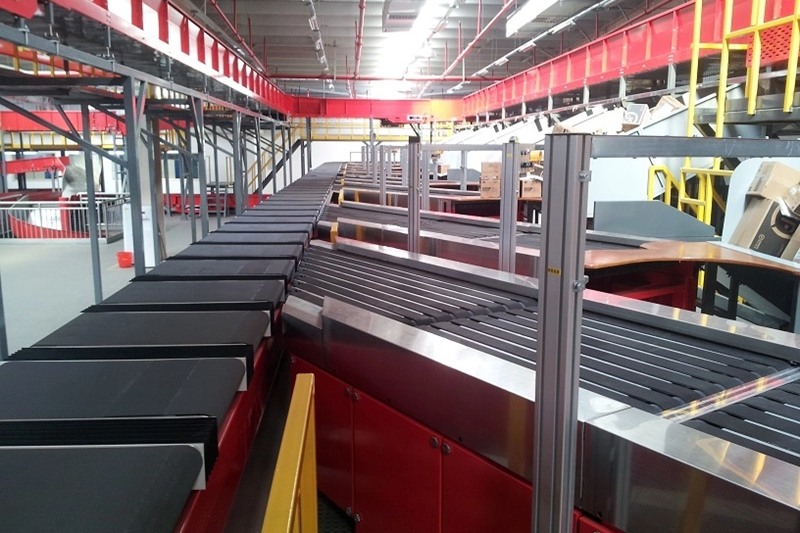

SF Cold Chain
As China's leading cold chain logistics service provider, SF Cold Chain has extremely high requirements for the efficiency, stability, and environmental adaptability of logistics equipment. To meet SF Cold Chain's needs for high efficiency, energy savings, and precise control, China International Marine Containers (Group) Co., Ltd. selected 50 motorized rollers for conveying, totaling 540 sets, applied in the logistics transmission system of cold chain warehouses.
Starbucks
The Kunshan Starbucks production base successfully overcame the inefficiencies and instability of traditional conveying systems by introducing over 500 sets of M&D servo conveyor rollers, achieving a comprehensive upgrade of the production process. Leveraging innovative servo technology, M&D tailored a high-precision, high-response conveying solution for Starbucks, ensuring precise and seamless conveyance of coffee raw materials and packaging materials, significantly enhancing the automation level and operational efficiency of the production line.
Nissin Foods
The Jiaxing Nissin Foods automated factory project includes 4 instant noodle production lines, 6 soup base production lines, and 10 cup-making production lines, with the transfer conveying module using over 200 sets of 50 motorized rollers for conveying, applied in the material conveying of food warehouses.
Shengmei New Project
In the Chongqing Yubei Transsion Smart Park, M&D servo conveyor rollers were deployed on a large scale with over 600 sets, becoming the core power supporting the efficient operation of the production line. As a globally renowned smartphone manufacturing base, the Transsion Smart Park project covers a total construction area of 500,000 square meters, with an annual production capacity of over 50 million phones, demanding extremely high stability and automation levels for the production line. Through customized conveying solutions, M&D successfully overcame the inefficiencies and frequent maintenance issues of traditional conveying systems, helping Transsion achieve daily production capacity increases and cost optimization.
Why You Choose Our Motorized Roller
M & D servo motorized roller drives the new future of the transmission industry. M & D servo motorized roller, integrating advanced servo technology and exquisite manufacturing technology, stands out with outstanding performance. Its precise speed control, to ensure the stability of material transmission, reduce errors, improve production efficiency. Whether in the high-speed production line, or in the high precision of logistics warehousing, M & D servo motorized roller, can be perfect.
This product not only has excellent performance, but also has excellent energysaving characteristics. Using high efficiency motor and intelligent control system to reduce energy At the same time, for you to save operating costs. Its compact design, space saving, easy installation and maintenance, bring great convenience to you production process. M & D servo motorized roller is widely used in food, chemical industry, logistics and other industries, providing customized solu tions for customers in different fields. With its reliable quality and high quality service, M & D has won the trust and praise of many customers.
Precision Control and High Response Speed
Equipped with a high-precision encoder and servo motor, supporting precise speed, position, and torque adjustment (using a 17-bit absolute encoder), with high starting torque (2.0m/s) still meeting high torque output and adjustable acceleration and deceleration, suitable for high-speed sorting and heavy-load requirements, applicable to logistics sorting, automated production lines, and other high-precision scenarios.
Modular Design and Flexible Adaptation
The product shape can perfectly replace existing market equipment, with an internal gearless design simplifying the structure, supporting quick installation and flexible layout adjustments, such as achieving "plug-and-play" and remote debugging in express narrow belt sorting projects.
Low Noise and Long Life
Direct-drive technology reduces mechanical friction and vibration, with equipment operating noise lower than traditional rollers, combined with high-quality materials and precision processes, extending service life by over 30%.
Full-Cycle Service Assurance
From customized solution design to after-sales maintenance, M&D provides professional team support, with engineers able to quickly respond to on-site issues, minimizing downtime losses.
Multiple Safety Protection Mechanisms
Integrated overload protection, temperature monitoring, and emergency braking functions, automatically stopping when load exceeds limits or temperature is abnormal, avoiding equipment damage and production accidents.
FAQs
Q: What is the operating speed range of the motorized roller? Can it be adjusted?
The operating speed range is 0.1m/s to 2.5m/s, and it can be adjusted according to usage conditions.
Q: Does it support high-precision control? How is transmission stability ensured?
Yes, our motorized roller uses a 17-bit absolute encoder and servo precision control to ensure transmission stability.
Q: Can the motorized roller operate normally in low-temperature, high-temperature, or humid environments?
Robotic arms are widely used in manufacturing, logistics and warehousing, healthcare, agriculture, and other fields for tasks such as automated production, handling, assembly, packaging, and precision operations.
Q: What is the energy consumption of the motorized roller? Is it energy-efficient?
Our motorized roller adopts a new motor structure design, maximizing motor efficiency. Using an external rotor direct-drive solution, it eliminates mechanical losses from reduction gears, improving overall energy efficiency by over 10%.
Q: Can the diameter, length, and other specifications of the motorized roller be customized according to our needs?
Customization is available.
Q: Is the motorized roller easy to install? Are additional accessories or technical support required?
We provide corresponding installation manuals and technical support.
Q: Can the motorized roller operate normally in low-temperature, high-temperature, or humid environments?
We provide 24-hour timely response and can offer on-site repair services.
Q: Are spare parts for the motorized roller easy to obtain? Does the supplier provide long-term spare parts support?
We can provide long-term spare parts support and stocking service.
Q: Success Cases: Are there successful application cases for similar projects? Especially in cold chain, warehousing, manufacturing, and other fields.
We have multiple success cases, such as SF Cold Chain Warehouse, Nissin Large Warehouse, etc.
Q: Can the motorized roller operate normally in low-temperature, high-temperature, or humid environments?
We provide 24-hour timely response and can offer on-site repair services.
Q: Drive Method: What drive method does the motorized roller use?
Our motorized roller uses an external rotor direct-drive.
Q: What is the energy-saving effect of the M & D servo electric drum?
Using permanent magnet direct drive technology, without traditional gear drive, the energy consumption is reduced by 15% -20% (measured data), and there is no grease dependence, to avoid the energy loss caused by friction.
Q: Stability is the equipment in extreme temperature or wet environments?
Through the-20°C to 45 °℃ harsh environment test, the cold storage, high temperature workshop and other scenes can operate stably. For example, in the cold chain logistics project, the electric drum has no grease solidification in the low temperature environment, and the environmental humidity (20-90% RH) has no coagulation frost, which is suitable for the needs of wet environment such as food and medicine.
Q: Support for customization requirements?
Support the full-scene customization scheme, including light load,heavy load, special-shaped parcel sorting, etc. For example, in Chongqing Transsion project, the ultra-thin body (thickness reduced by 15%) and low vibration design are customized to meet the transportation requirements of precision components in SMT workshop to ensure the non-destructive transportation of mobile phone components.
Q: Are the installation and maintenance very complicated? How to reduce the downtime?
The modular design realizes "plug and play" and reduces the installation cycle by 50%. Maintenance needs only a simple cleaning and bearing inspection, no gear wear problem. At the same time, it provides visual operation and maintenance platform and predictive maintenance services to give early warning of potential faults in advance (for example, the sorting efficiency of an express project reaches 7500 pieces / hour, and the shutdown rate is less than 0. 5%).
Q: Are there any successful cases to prove the actual effect of the product?
Typical cases include: Starbucks Kunshan: more than 500 sets of equipment have increased production capacity by 20% and reduced energy consumption by 15%; Chongqing Transanyin Huiyuan: daily production capacity of 50 million mobile phones, sorting efficiency increased by 25%:
Q: Compared to European brands, what is M&D's core competitiveness?
At 50% of the cost of European brands, we provide equivalent perfommance, along withadditional benefits. Flexible customization: Rapid adaptation to industry-specific needs; Intelligent maintenance: Cloud-based monitoring and predictive maintenance. Localized service: Quick response and low-cost maintenance.
Q: What is the operating speed range of the motorized roller?
ls it adjustable? The speed range isdivided into low, medium, and high-speed adjustments. it can be freely adjusted.
1.Low: 6-18 mmin,18-36 mmin
2.Medium: 18-60 mmin, 60-90 m/min
3. High: 120 m/min
Q: Are technical documents available in multiple languages?
Yes! We provide versions in Chinese，English, Korean，Japanese:
Operation manual: Includes detailed illustrations and safety instructions; Installation guide: Step-by-step video tutorials, online video guidance, etc.
Q: What types of drive methods are supported by the motorized roller?
1. Poly-V belt: Recommended for up to 24 passive rollers
2.Synchronous belt: Recommended for up to 12 passive rollers
3.O-belt: Recommended for up to 10 passive rollers.
4.Sprocket: Recommended for up to 24 passive rollers.
Note: For Poly-V belt drive, the single zone load is recommended not to exceed 300KG. For sprocket drive, the single zone load is recommended not to exceed 260KG.
Q: What are the drive control methods? What functions does the drive support?
1.3-speed lO control (PNP & NPN),
2.Forward and reverse operation
3.Dynamic braking/servo braking
4.R5485 communication (Modbus Rtu);
5.16-speed dial selection;
6.4-speed acceleration and deceleration.
