F -ECI

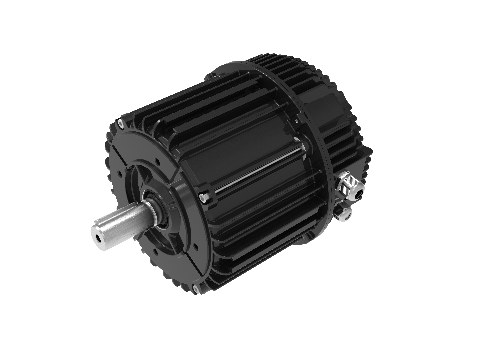

F-Series ECI motor

F Series ECI motor is a high efficiency permanent magnet synchronous motor with a integrated drive, not only achieving IE5 Super Premium Efficiency level but also ensure cost reduction for drive cost.

It is IP55-IP67 fully sealed and corrosion-resistant.
The poultry house can resist ammonia gas, the cattle house can withstand high-pressure water washing, and the pig house can prevent dust.
F Series ECI motors are specially designed for fans and ventilation to achieve diverse applications.


Applicable Industries: Livestock ventilation and air-exchange systems
Input Voltage: 1ph,200-277V,50/60Hz & 3ph,360-460V,50Hz/60Hz(Other voltage specifications available upon technical consultation)
Output Power:(F80:0.27kW-2.26kW)&(F112:1.32kW-3.52kW)&(F160: 2.2kW-3kW)
Ambient Temperature: -25℃to +40℃
Protection Class: 1P54-IP67
Speed Control Methods: 0-10 V(VSP speed control) or RS-485 and other control interfaces
Mounting Options: Sliding rail / B14 /B34 and other customized installation types
Protection Features: Over-current/ Stall/ Phase-loss/IPM over-temperature/Reverse-airflow start protection
Certifications: CE / ETL
Warranty Period: 12 months
Energy Efficiency Rating: IE5(in accordance with IEC 60034-30-1)&Grade1 Energy Efficiency -under testing
