When engineers look to upgrade from traditional ball screws to a linear motor, the first question often involves the power source: Is it AC or DC? This sounds like a simple binary choice, but the reality involves a fascinating mix of both. Technically, the vast majority of modern Industrial linear motors function as AC synchronous motors. However, they almost always run off a DC bus provided by a specialized drive or inverter.
Understanding the electrical nature of a linear motor is critical for achieving High precision in automation. Whether you are building a High speed pick-and-place machine or a Modular assembly line, the way electricity interacts with the Permanent magnet track determines your system's efficiency. In this guide, we will settle the AC vs. DC debate and explain how these power phases create the smooth, direct motion that defines modern manufacturing.

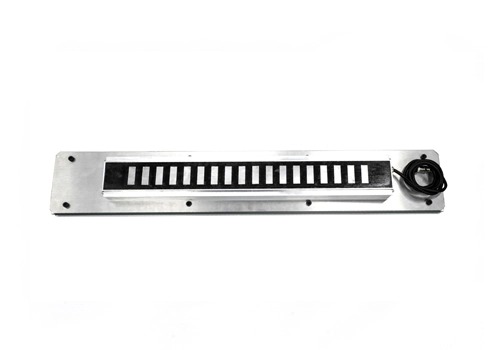

To answer the core question: most modern Industrial linear motor systems are AC-driven. Specifically, they are brushless AC synchronous motors. They operate on the same principles as a rotary permanent magnet motor, but "unrolled" into a flat plane.
Inside the "forcer" (the moving part), there are coils that receive three-phase alternating current. This current creates a shifting magnetic field. Because the track consists of a Permanent magnet array, the shifting field in the coils pushes against the fixed magnets to create linear force. Even though the primary power coming into a factory might be DC for some small components, the motor itself requires the oscillating nature of AC to keep moving along the track.
While the motor "sees" AC, the motor drive often starts with a DC power supply. The drive takes that DC and "chops" it into a three-phase AC signal using Pulse Width Modulation (PWM). This is why some people get confused. They see a DC power input at the controller and assume it is a DC linear motor. In reality, the controller is a sophisticated translator, turning static DC into the dynamic AC needed for High speed travel.
When choosing an AC linear motor, you generally face two structural choices: Ironcore and Ironless. Both are typically AC-driven, but they handle that power differently to achieve varying levels of performance.
An Ironcore linear motor wraps its coils around silicon steel laminations. This "iron" significantly increases the magnetic flux, allowing it to exert massive force. These are the workhorses of the Industrial world. They are perfect for heavy-duty machining where you need to move large masses without losing steps. However, the iron causes "cogging"—a slight jerkiness as the iron passes over the magnets.
If your goal is High precision scanning or semiconductor inspection, you likely need an Ironless linear motor. These have no iron in the forcer, meaning zero cogging. They are incredibly light, allowing for extreme acceleration. Because they don't have the magnetic attraction between the forcer and the track, they are also easier to install in Modular cleanroom environments.
| Feature | Ironcore Linear Motor | Ironless Linear Motor |
| Primary Power | AC (Three-Phase) | AC (Three-Phase) |
| Force Density | Very High | Moderate |
| Cogging Force | Present (Requires Software Comp) | Zero |
| Heat Dissipation | Excellent (Through Iron) | Moderate |
| Best For | Heavy Industrial Cutting | High precision Lab Work |
While AC dominates the market, DC linear motor variants do exist, though they are usually found in niche or older applications. Understanding these helps clarify why the industry moved toward AC.
In a brushed DC system, mechanical brushes switch the current as the motor moves. This is common in cheap, low-end actuators but rare in High precision Industrial setups. Brushes create friction, generate dust (unsuitable for cleanrooms), and wear out over time. It is a simple "plug and play" DC solution, but it cannot match the High speed or life expectancy of a brushless AC linear motor.
Voice coils are technically a type of DC linear motor. They operate just like a loudspeaker. When you apply DC to the coil, it moves within a permanent magnetic field. They are fantastic for very short strokes (usually under 50mm) and offer incredible High precision. However, for long-travel Industrial automation, their lack of a Modular track makes them less versatile than their AC cousins.
Whether the motor is technically AC or DC, the presence of a Permanent magnet track is what makes direct linear motion possible without gears. The interaction between the "field" and the "armature" is the heart of the machine.
In an AC linear motor, the speed of the motion is "synchronized" with the frequency of the AC power. If the drive increases the frequency, the motor moves at a High speed. Because the Permanent magnet track has a fixed "pitch" (the distance between North and South poles), the drive knows exactly how much current to pulse to move the forcer a specific distance.
By using high-energy neodymium Permanent magnet arrays, we can pack a lot of power into a small footprint. This is essential for Modular machines where space is a premium. It allows the motor to maintain high force without overheating, provided the drive manages the AC cycles correctly.
Unlike induction motors, Permanent magnet motors don't need to spend energy "exciting" the magnetic field in the track—it is already there. This makes the linear motor much more energy-efficient. Most of the heat stays in the forcer (the coil part), which is much easier to cool with air or liquid than the entire length of the track.
The reason we prefer AC for a linear motor in Industrial settings is the level of control it offers. When paired with a servo drive, an AC motor becomes a "closed-loop" system capable of sub-micron accuracy.
To achieve High precision, the AC drive needs to know exactly where the forcer is. A linear encoder sends this data back to the drive. The drive then adjusts the AC waveform in real-time. If the motor encounters resistance, the drive increases the current. This happens thousands of times per second.
Because modern AC drives are so flexible, you can build Modular systems of any length. You simply add more Permanent magnet track sections. The AC control logic remains the same whether the track is one meter or fifty meters long. This scalability is a major reason why AC linear motor technology is the standard for modern logistics and large-scale manufacturing.
While the motor runs on AC, the "DC Link" inside the drive is what enables High speed bursts. This is a technical nuance that procurement officers should understand.
Inside the drive, the incoming power is converted to DC and stored in large capacitors. This is the "DC Link." When the linear motor needs to accelerate to a High speed instantly, it draws that stored energy from the capacitors. This provides a much faster response than trying to pull it directly from the AC grid.
When a High speed linear motorbrakes, it actually acts as a generator. It takes that kinetic energy and sends it back to the drive. The drive converts this back into DC. In some Industrial setups, this energy can be shared with other motors on the same DC bus, significantly lowering the total power bill of the factory.
Choosing between AC and DC concepts also impacts how you design your machine's physical layout. Most Industrial builders prefer the Modular approach offered by AC systems.
Since most factories already run on AC power, integrating an AC linear motor is straightforward. You don't need massive external DC rectifiers for the whole line. Each drive handles the conversion locally. This Modular independence means if one drive fails, the rest of the line stays up.
AC motors generally require more complex cabling (three phases plus a ground and feedback), but modern "single-cable" technologies are emerging. These combine power and feedback into one Durable cord, reducing the "cable track" weight—a critical factor when the motor is moving at a High speed.
When deciding on a linear motor for your application, don't get hung up on the "AC or DC" label. Instead, focus on the performance metrics that the drive-motor combo provides.
For pure speed and force: Go with a Brushless AC Ironcore system.
For smoothness and accuracy: Choose a Brushless AC Ironless system.
For micro-adjustments in a small space: A DC Voice Coil might work.
For easy setup: Look for Modular AC systems with integrated drives.
So, are linear motors AC or DC? Technically, they are almost always AC synchronous motors. They rely on the alternating nature of electricity to create a traveling magnetic field that interacts with a Permanent magnet track. This combination allows for the High speed and High precision that modern industry demands. While the drive might take a DC input, the "magic" happens through AC. Understanding this distinction ensures you choose the right drives and cables for your next Modular automation project.
Q1: Can I run a linear motor directly from a DC battery?
Only if you have an inverter or a motor drive in between. The linear motor itself needs alternating phases to move. The drive will take the battery's DC and convert it into the required AC signals.
Q2: Why do people call them "Brushless DC" (BLDC) linear motors?
This is a common marketing term. BLDC motors are technically AC motors with a trapezoidal back-EMF. They are "DC" only in the sense that the system as a whole usually accepts a DC power input.
Q3: Does an Ironcore motor use more power than an Ironless one?
Not necessarily. Ironcore motors are actually more efficient at producing high force because the iron helps concentrate the magnetic field. However, they are heavier, so they require more energy to accelerate.
