How Do I Know if My Motorized Rollers Are Overloaded?

Motorized rollers are essential components in modern conveyor systems, offering a compact, energy-efficient solution for material handling. However, just like any mechanical system, motorized rollers can experience performance issues—one of the most common being overloading. Detecting and responding to overload conditions is critical not just for system longevity, but also for maintaining operational safety and efficiency.

What Are Motorized Rollers and How Do They Work?

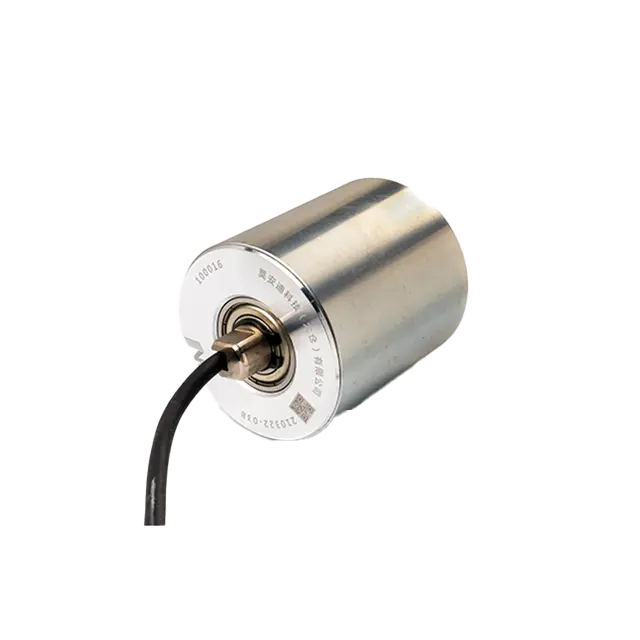

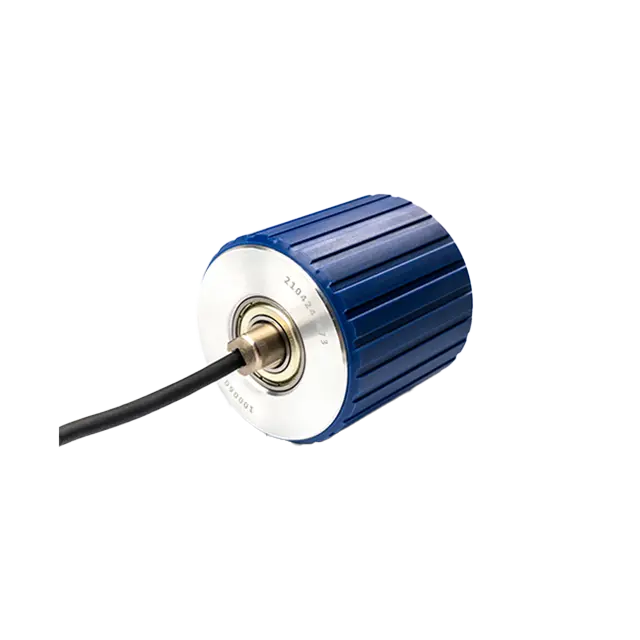

Motorized rollers, also known as drum motors or powered rollers, are conveyor components that combine a motor and gearbox within the roller itself. They are used in a variety of industries including logistics, packaging, manufacturing, and distribution centers.

Each roller contains an electric motor (typically 24V or 48V DC), internal gears, and sensors to allow for precise speed and torque control. These rollers can be programmed to accelerate, decelerate, or stop depending on system requirements, making them a cornerstone of intelligent conveyor systems.

Due to their compact design and low maintenance needs, motorized rollers are widely adopted in automated environments. However, their enclosed design also makes it slightly more difficult to visually identify mechanical issues such as overloading, compared to traditional motor setups.

Key Signs That Your Motorized Rollers Are Overloaded

1. Excessive Heat Generation

One of the earliest indicators of overload is abnormal heat production. Under normal operating conditions, motorized rollers generate a moderate amount of heat that is well-managed by their internal design. However, when overloaded, the current draw increases substantially, leading to overheating.

Symptoms to watch for:

• Warm or hot-to-touch outer roller casing

• Sudden shutdowns due to thermal protection

• Faint burning smell near the roller housing

Excessive heat can degrade internal components over time, including insulation, lubricant, and seals. If these are damaged, performance will degrade rapidly. Installing temperature sensors or using infrared thermography can help detect heat issues early.

2. Increased Current Draw and Tripped Circuit Breakers

Another clear sign of an overload condition is an increase in electrical current draw. Most motorized rollers come with specifications regarding rated voltage and current. Operating outside this range puts stress on the internal motor and may cause fuses or breakers to trip frequently.

Below is a sample table showing acceptable versus problematic current ranges:

Voltage Rating	Normal Current Draw	Warning Level	Critical Level
24V DC	2.0 - 3.5 A	3.6 - 4.2 A	> 4.2 A
48V DC	1.0 - 2.5 A	2.6 - 3.5 A	> 3.5 A

When breakers trip repeatedly, or if the system resets but fails to maintain normal operation, investigate for overloading. Over time, this repeated stress can reduce the life of both the rollers and the power supply system.

Mechanical Indicators of Overload in Motorized Rollers

Sluggish Performance and Unusual Noises

When your motorized rollers are struggling under a heavy load, you may notice a delay in acceleration, slower speeds, or jerky movements. These symptoms indicate the motor is operating at or beyond its torque capacity.

Unusual noises such as grinding, whining, or clicking can also suggest gear or bearing stress due to excess weight. If the conveyor system was previously smooth and quiet, any deviation in acoustic profile warrants investigation.

Key mechanical symptoms include:

• Uneven rotation

• Delay in startup

• Irregular stopping

• Audible gear strain

Don’t ignore these signs. They often precede motor failure or gear damage, both of which can result in extended downtime and expensive replacements.

Operational Triggers: What Causes Motorized Rollers to Overload?

Understanding why your rollers are overloading is just as important as identifying the symptoms. Here are the most common root causes:

1. Inappropriate Load Weight and Distribution

Each motorized roller has a maximum weight capacity. When the total weight of conveyed items—or the way that weight is distributed—exceeds this threshold, the roller’s internal components struggle to maintain speed and torque.

A few operational triggers include:

• Excessively heavy cartons or pallets

• Irregular weight distribution across the belt

• Surges in load from upstream equipment

Improperly distributed loads can also lead to torsional imbalances, putting additional stress on one side of the roller or causing the motor to compensate unevenly.

2. Belt Tension and Frictional Resistance

Even if your motorized rollers are within load capacity, improper belt tension can create unnecessary friction. This mechanical resistance forces the motor to work harder, mimicking the effects of an actual overload.

Causes of frictional overload include:

• Worn-out bearings or pulleys

• Misaligned conveyor sections

• Debris buildup under the belt

• Excessive tension settings

Routine inspection and preventive maintenance can help avoid these hidden mechanical causes.

Diagnostic Tips: How to Confirm an Overload Situation

Use of Monitoring Tools and Preventive Systems

To prevent catastrophic failures, many facilities now incorporate real-time monitoring tools into their conveyor systems. These can include:

• Thermal sensors: To detect overheating

• Current meters: To monitor amps in real time

• Speed encoders: To verify expected vs. actual output

• Load cells: To track weight variation dynamically

Advanced PLC systems can even be programmed to log historical trends and flag overload conditions before they become critical.

Best practices for overload diagnosis:

1. Compare current draw against manufacturer ratings.

2. Check system logs for repeated shutdowns or resets.

3. Inspect physical components for signs of strain or wear.

4. Measure actual load weights on conveyor sections.

5. Monitor acceleration and deceleration times for delays.

The integration of predictive analytics and automated alerts can drastically reduce downtime and prevent component failure from unnoticed overload situations.

Preventive Measures to Avoid Overloading Motorized Rollers

Load Management and System Design Optimization

Preventing motor overload starts with proper system design and load management. This means understanding not only the capabilities of individual rollers but also how those rollers interact within a larger conveyor ecosystem.

Preventive strategies:

• Distribute load evenly: Don’t concentrate weight in one area.

• Segment heavy loads: Break down oversized shipments if possible.

• Calibrate conveyor belt tension regularly

• Use rollers with sufficient torque margin

• Perform regular maintenance and cleaning to reduce friction

Additionally, consider investing in motorized rollers with built-in overload protection features such as torque limiters, soft-start functions, or integrated diagnostics.

FAQ: Common Questions About Motorized Roller Overloads

Q1: Can motorized rollers recover automatically from an overload?
A: Some models with built-in thermal protection may shut down and restart automatically after cooling. However, repeated overloads can cause long-term damage and should not be ignored.

Q2: How often should I inspect motorized rollers for overload risk?
A: Ideally, include overload checks in your weekly or monthly maintenance schedule. If operating under high loads, inspect more frequently.

Q3: Is overloading covered under manufacturer warranty?
A: Most manufacturers exclude overload-related damage from warranty coverage. This reinforces the importance of adhering to rated capacity guidelines.

Q4: Can software help prevent roller overloads?
A: Yes. Smart conveyor systems with IoT connectivity can alert operators when load or torque thresholds are exceeded, allowing for real-time intervention.

Conclusion

Motorized rollers offer a reliable, low-maintenance way to automate conveyor systems—but only when used within their designed parameters. Overloading may not always lead to immediate failure, but the long-term consequences can be significant, including decreased productivity, unexpected downtimes, and high replacement costs.

By understanding the warning signs of overload, implementing monitoring tools, and proactively managing your system’s load, you can maximize both the performance and lifespan of your motorized rollers. Always remember: A system that runs at 80% of its capacity with 100% uptime outperforms one that runs at 110% capacity but fails unexpectedly.
