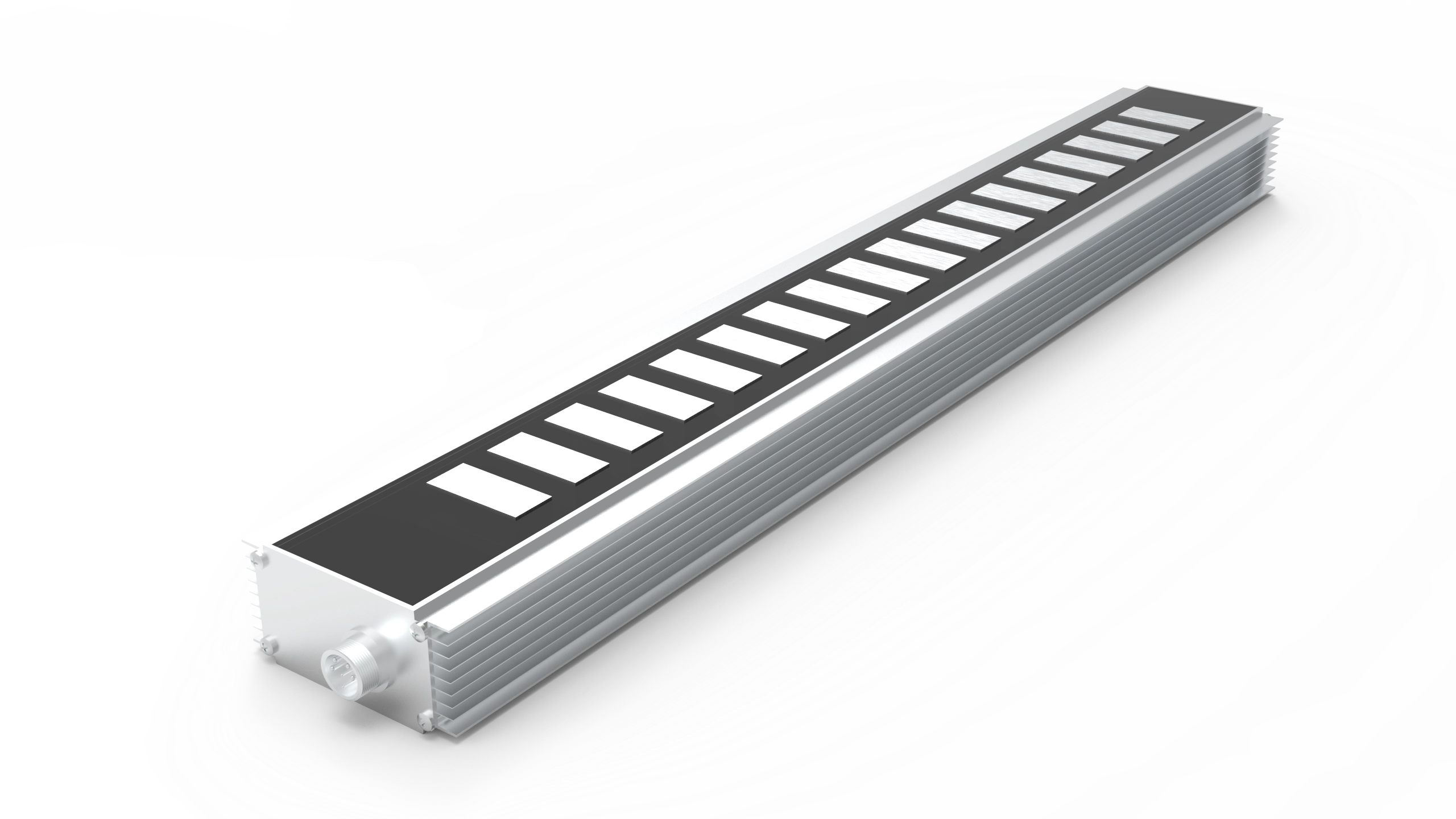

If you imagine a traditional electric motor being "unrolled" and laid flat on a table, you have the basic conceptual model of a linear motor. Unlike conventional rotary motors that use gears, belts, or lead screws to convert circular motion into straight-line travel, this technology generates motion directly in a line. It is a game-changer for Industrial automation, offering a level of High speed and High precision that mechanical linkages simply cannot match.
In this guide, we will peel back the layers of electromagnetic theory to explain exactly how a linear motor works. We will explore the interaction between the Permanent magnet track and the moving coil, the differences between Ironcore and Ironless designs, and why this Modular technology is becoming the standard for 21-century manufacturing. By understanding the physics of direct drive, you can better evaluate if it is the right solution for your next high-performance project.
The fundamental operation of a linear motor relies on the Lorentz Force law. This principle states that when an electric current passes through a wire placed within a magnetic field, a force is exerted on that wire. In a rotary motor, this force creates torque; in our case, it creates "thrust."
A linear motor consists of two primary parts: the "Forcer" (which contains the motor coils) and the "Stator" or magnetic track (which contains a series of Permanent magnet units). When we energize the coils in the forcer with a three-phase AC current, it generates a moving magnetic field. This field interacts with the stationary Permanent magnet track, pushing the forcer forward or backward.
Because there are no mechanical converters like ball screws, the energy goes directly into moving the load. This lack of contact means there is no "backlash" or friction from gears. For Industrial applications requiring High precision, this direct coupling allows the system to achieve sub-micron accuracy that stays consistent over millions of cycles. It is the purest way to turn electricity into motion.
Not all Industrial applications have the same requirements. Engineers generally choose between two main physical architectures: Ironcore and Ironless. Both use the same electromagnetic principles but differ in how they manage the magnetic flux.
An Ironcore linear motor features coils wound around silicon steel laminations (the "core"). The presence of iron significantly increases the magnetic flux, which translates into much higher thrust forces. If you need to move heavy loads at High speed, this is the design for you. However, the iron also creates "cogging"—a slight jerkiness as the core passes over the magnets.
An Ironless linear motor removes the steel core entirely, replacing it with an epoxy-encapsulated coil. This eliminates cogging, making the motion incredibly smooth. These are the preferred choice for High precision scanning or inspection tasks. While they offer less total force than their iron-heavy cousins, their "lightweight" nature allows for extreme acceleration.
| Feature | Ironcore | Ironless |
| Thrust Force | Very High | Moderate |
| Cogging | Present (requires software compensation) | Zero |
| Heat Dissipation | Excellent (via the core) | Moderate |
| Precision | High | Ultra-High |
| Application | Heavy CNC, Machining | Semiconductor, Medical |
The "Stator" of a linear motor is essentially a long rail of magnets. Most modern systems utilize a Permanent magnet arrangement (often Neodymium) to provide a constant, powerful magnetic field. One of the most significant advantages of this setup is its Modular nature.
Because the track is made of individual segments, we can bolt them together to create a path of almost any length. Unlike a ball screw, which starts to whip or vibrate if it gets too long, a linear motor maintains its High precision whether the track is 10 centimeters or 30 meters long. We simply add more Modular magnet sections to reach the desired distance.
Manufacturers often use a "Halbach Array" for the Permanent magnet track. This specific arrangement of magnets reinforces the magnetic field on the "working side" of the motor while nearly cancelling the field on the back side. This maximizes the efficiency of the linear motor, ensuring that every amp of current contributes to moving the load rather than wasting energy as heat.
A linear motor is an "open" system; it doesn't inherently know where it is. To achieve High precision, it must be paired with a high-resolution linear encoder. This feedback loop is what makes the technology so powerful for Industrial robotics.
The encoder "watches" the position of the forcer and sends that data back to the drive controller thousands of times per second. If the system detects even a tiny deviation from the planned path, it adjusts the current in the coils instantly to correct it. This allows a linear motor to maintain its position with incredible stiffness, resisting external forces or vibrations that would ruin the quality of a delicate manufacturing process.
Heat is the enemy of High precision. Because the linear motor is often integrated directly into the machine frame, we must manage the thermal energy. Premium systems often include integrated cooling channels. By keeping the motor at a constant temperature, we prevent the machine parts from expanding, which would otherwise cause the "calculated" position to drift over time.
In traditional mechanical systems, High speed is often limited by the physical properties of the screw or belt. If you spin a ball screw too fast, it will vibrate and eventually fail. A linear motor has no such speed limit because there is no physical contact between the moving parts.
It is common for an Industrial linear motor to reach speeds of over 10 meters per second. More importantly, they can achieve accelerations of 10G or higher. This "snappiness" reduces the "dwell time" between operations in a factory, significantly increasing the total parts produced per hour.
Since the forcer literally "floats" above the Permanent magnet track (separated by a small air gap), there is no wear and tear. No friction means no dust, which makes the linear motor perfect for cleanroom environments like semiconductor fabrication. It can run at High speed 24/7 for years with virtually zero maintenance, unlike belts that stretch or screws that need constant lubrication.
Knowing how it works helps identify where it belongs. Today, the linear motor is the backbone of several high-tech industries where "good enough" isn't an option.
In the world of microchips, High precision is everything. linear motor stages are used to move wafers under lithography beams. The smooth, cogging-free motion of an Ironless design ensures that circuits measured in nanometers are placed perfectly every time.
For laser cutting or waterjet tables, the Modular Ironcore linear motor is the king. It provides the high thrust needed to move a heavy cutting head at High speed across a large work surface. The ability to create a 20-meter Modular track without losing accuracy is a benefit that no other drive technology can provide.
Procurement officers and engineers often compare the linear motor against traditional ball screws or rack-and-pinion systems. While the initial cost of a linear motor is higher, the "Total Cost of Ownership" often tells a different story.
| Metric | Ball Screw | Rack & Pinion | linear motor |
| Max Speed | Low/Medium | Medium | High speed |
| Accuracy | Good | Moderate | High precision |
| Backlash | Yes | Yes | Zero |
| Wear | High | Medium | None |
| Max Length | Limited | High | Unlimited (Modular) |
The linear motor wins on almost every performance metric. The only trade-off is the complexity of the control electronics and the initial price of the Permanent magnet material. However, when you calculate the increased production speed and decreased maintenance, the ROI is usually very clear.
Implementing a linear motor requires a different mindset than traditional mechanics. Because the magnetic forces are so strong, the machine frame must be incredibly rigid.
In an Ironcore setup, the attraction force between the forcer and the magnets can be several times larger than the actual thrust force. This puts a massive load on the linear bearings. An expert designer knows they must select Industrial-grade bearings that can handle this "downward" pull while still allowing for High speed motion.
Because the track consists of a powerful Permanent magnet array, it will attract any loose steel particles in a workshop. This can lead to "crunches" if metal shavings get into the air gap. Most Industrial installations use protective bellows or covers to keep the track clean, ensuring the linear motor continues to work at peak efficiency for its entire lifespan.
The linear motor represents the pinnacle of motion control technology. By eliminating mechanical transmission and utilizing the direct interaction of magnetic fields, it achieves a balance of High speed, High precision, and longevity that was once thought impossible. Whether you choose an Ironcore design for raw power or an Ironless version for smooth, delicate tasks, understanding these principles ensures you can harness the full potential of this Modular powerhouse.
Q1: Is a linear motor more expensive to run than a rotary motor?
In terms of pure electricity, they are very efficient because they eliminate mechanical losses. However, the initial purchase price is higher due to the cost of the Permanent magnet track. Most businesses find that the increased production speed pays for the difference quickly.
Q2: Can a linear motor be used for vertical applications?
Yes, but they require a "counterbalance" or a brake. Since there is no friction or mechanical "hold," a forcer will fall if power is lost. Engineers usually use a pneumatic cylinder or a spring to offset the weight of the load.
Q3: Does a linear motor generate a lot of heat?
All electric motors generate heat. Because a linear motor is often compact and carries the load directly, we usually recommend liquid cooling for Heavy duty Industrial cycles to maintain High precision.
