T100ECI

As an OEM manufacturer of EC and ECI permanent magnet motor platforms, we build the T100ECI integrated VFD motor for ventilation fleets needing IE5 efficiency without a separate drive cabinet. The T100ECI ECI motor pairs an IEC 100 frame permanent magnet synchronous motor (PMSM) with an integrated drive. Its three-phase representative variant covers 0.63-3.58 kW and 10 N·m, delivers 3.14 kW at 3000 rpm, and reaches measured system efficiency up to 91.9% including drive losses. CE and ETL certified, the T100ECI integrated drive motor directly replaces IEC 100 frame AC motors.
Availability:
Quantity:
Product Description

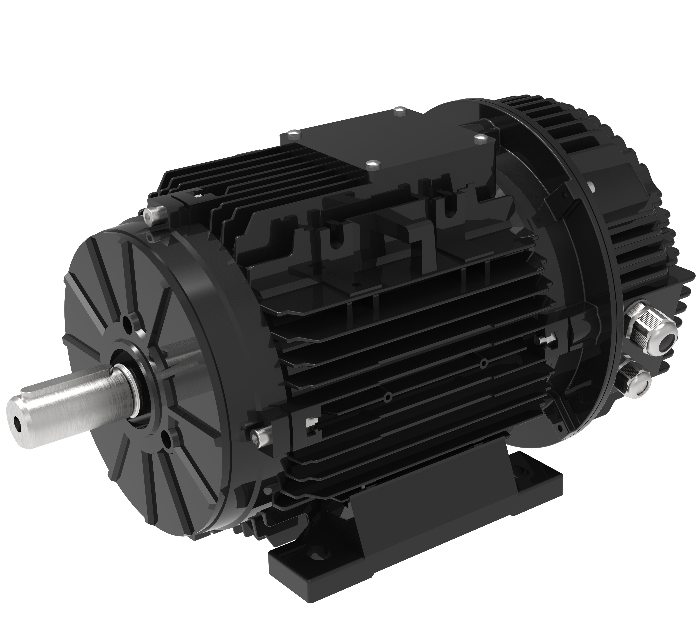

Overview of the T100ECI Integrated VFD Motor

With the drive placed inside the motor, the T100ECI integrated VFD motor needs no external VFD, drive cabinet, or shielded cable: one cable set connects power and control, cutting panel space and commissioning steps. The inner-rotor PMSM design offers neodymium iron boron or ferrite magnets, constant-torque regulation over 600-3000 rpm, and EU IE5 efficiency under IEC 60034-30-1, equivalent to China Class 1. The ECI platform reaches up to 5 kW.

Key Specifications of the T100ECI Integrated VFD Motor

Item

Value

Power Range

0.63-3.58 kW (IEC 100 frame)

Rated Torque (Representative Variant)

10 N·m

Rated Power (Representative Variant)

3.14 kW @ 3000 rpm

Input Power

360-460 V, 50/60 Hz, Three-phase

Speed Range

600-3000 rpm

Efficiency

Up to 91.9% @ 3000 rpm (system total efficiency, including VFD losses)

Energy Efficiency Class

IE5 (IEC 60034-30-1)

Protection Rating

IP55-IP66

Control Modes

Modbus RS485, 0-10 V, PWM

Protection Functions

Overcurrent, rotor blockage, phase loss, IPM over-temperature, reverse wind startup

Ambient Temperature

-25°C to +40°C

Mounting

B3, B14, B5; removable feet; all IEC standard mounting types supported

Shaft Extension

Diameter 28 mm, shaft length 60 mm

Certification / Warranty

CE / ETL; 12 months domestic (18 months overseas)

Performance Advantages of the T100ECI Integrated VFD Motor

Integrated Drive Reduces Installation Scope

The T100ECI integrated VFD motor removes the external drive, cabinet, shielded cable, and separate wiring; it runs after cable connection, reducing drive-panel cost and wiring points on multi-fan projects.

Measured IE5 Efficiency, Including Drive Losses

At 3000 rpm the T100ECI ECI motor reaches measured system total efficiency up to 91.9%, including VFD losses — complete motor-and-drive performance, not a motor-only figure. It is classified IE5 under IEC 60034-30-1 and, in manufacturer comparisons, uses 15-20% less energy than IE2/IE3 AC motors in equivalent fan and pump duties.

Three Control Modes with RS485 Cascading

The T100ECI integrated drive motor accepts 0-10 V, PWM, and Modbus RS485 for EC fan controllers and building management systems; several T100ECI integrated VFD motors cascade on one RS485 bus for group control in livestock houses or data centers.

Protection for Unattended Operation

Five functions protect the T100ECI ECI motor: overcurrent, rotor blockage, phase loss, IPM over-temperature, and reverse wind startup. The brushless design has no wearable commutator parts, and S1 duty with forced ventilation supports uninterrupted operation.

T100ECI

Installation and Mounting for the T100ECI Integrated VFD Motor

Mounting Configurations and IEC 100 Replacement

The T100ECI integrated VFD motor offers B3 foot, B14 face, or B5 flange mounting with removable feet. The T Series supports all IEC mounting types (B3, B30, B14, B5, B34, B35, B14B, B5R), and IEC 100 dimensions allow in-place AC motor replacement without an adapter plate.

Shaft and Outline Dimensions

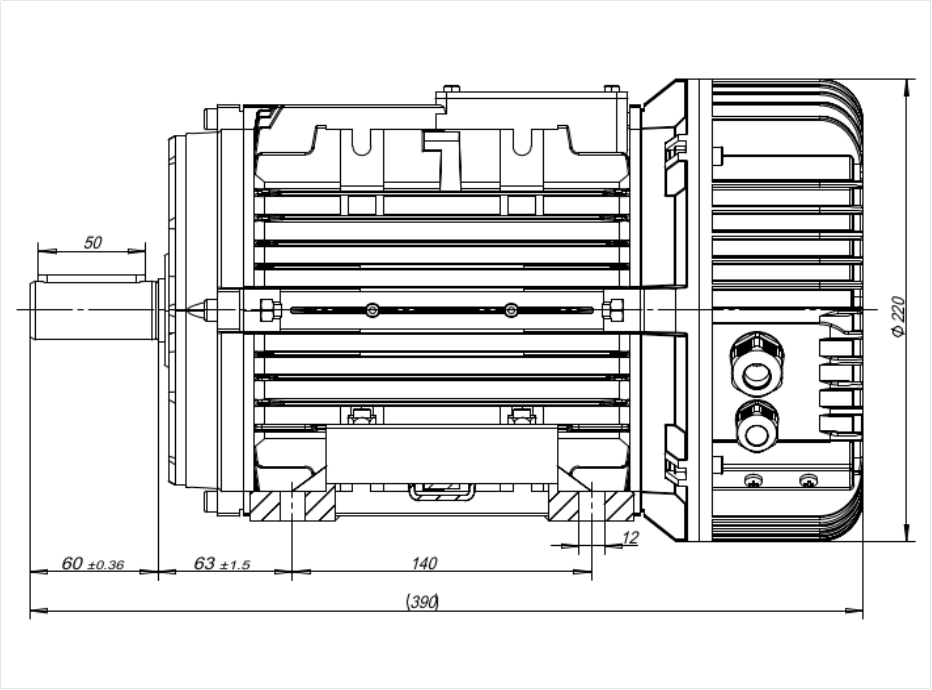

The shaft extension is 28 mm in diameter and 60 mm long with an IEC keyway; the drawing calls out a 50 mm key length, about 390 mm overall length, and Ø220 mm rear diameter.

Dimension

Value

Key length (upper shaft callout)

50 mm

Shaft extension length

60 ±0.36 mm

Front section

63 ±1.5 mm

Center section between mounting datum lines

140 mm

Rear section

12 mm

Overall length (reference dimension)

(390) mm

Rear outer diameter

Ø220 mm

Values are in millimetres; bracketed figures are reference dimensions. Please verify the certified 2D/3D drawing before installation.

Cables, Protection and Operating Environment

Each T100ECI integrated drive motor includes 1.5 m power and 1.5 m control cables, IP55 protection (upgradable to IP66), and -25°C to +40°C operation; customized models and 2D/3D drawings are available on request.

Applications for the T100ECI Integrated VFD Motor

The T100ECI integrated VFD motor is built for continuous fan and pump loads: livestock ventilation fans, indoor and outdoor central air-conditioning fans, cabinet cooling, cold storage fans, data center cooling, industrial fans, water pumps, dust removal equipment, and AC motor energy-saving retrofits.

Customization and OEM Services for the T100ECI Integrated VFD Motor

Voltage, speed, shaft diameter, mounting, control mode, cable length, connectors, and bearing brand are customizable on the T100ECI ECI motor, and OEM manufacturing for equipment brands is standard. Industrial clients can send duty-point data to our pre-sales team; customized T100ECI integrated VFD motors cover ambients outside -25°C to +40°C.

FAQ About the T100ECI Integrated VFD Motor

Does the T100ECI integrated VFD motor require an external VFD?

No. The T100ECI ECI motor integrates the drive inside the housing; only power and control cables connect at the motor, with no external drive or shielded cable.

What power supply does the T100ECI integrated VFD motor use?

The representative IEC 100 frame variant runs on 360-460 V, 50/60 Hz, three-phase input, covers 0.63-3.58 kW, and regulates over 600-3000 rpm; other voltages are customizable.

Can several T100ECI integrated VFD motors be controlled together?

Yes. The T100ECI integrated drive motor supports 0-10 V, PWM, and Modbus RS485, and multiple T100ECI ECI motors cascade on one RS485 bus via a building management system or fan controller.

What certification and warranty apply to the T100ECI ECI motor?

The T100ECI integrated VFD motor carries CE and ETL certification: 12 months from receipt domestically and 18 months from shipment for overseas orders, across Europe, North America, South America, and Australia.
