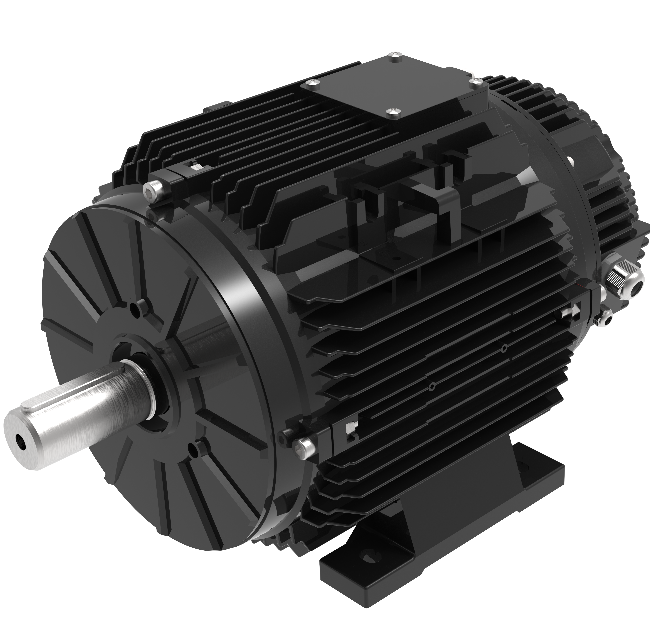

T132ECI

When applications demand high torque, the T132ECI delivers 26-48 Nm from an IE5 frame-132 motor with integrated drive. Output spans 1.63-4.08 kW at 3-phase 360-460 V, replacing motor-plus-drive assemblies in heavy fans and pumps. A 450-person team supports OEM customization, with CE/ETL certification and ISO 9001:2015 manufacturing keeping lead times reliable. Motor and Drive exports to Europe, the Americas and Australia.
Availability:
Quantity:
Product Description

Overview of the T132ECI Integrated Drive EC Motor

The T132ECI integrated drive EC motor is the high-torque model of the T Series ECI line. It combines an IEC 132 frame permanent magnet synchronous motor (PMSM) with a variable frequency drive integrated inside the motor housing, removing the need for an external drive cabinet, shielded motor cable, or separate drive wiring. The representative variant delivers 35 N·m rated torque over a 100-900 rpm constant-torque range and 3.3 kW at 900 rpm, so large-diameter fans can be direct-driven without a gearbox or belt. It meets IE5 efficiency per IEC 60034-30-1, records 88.3% peak system efficiency at 900 rpm including drive losses, and runs from a 360-460 V, 50/60 Hz, three-phase supply.

Key Specifications of the T132ECI Integrated Drive EC Motor

Item

Value

Power Range

1.63-3.54 kW (IEC 132 frame)

Rated Torque (Representative Variant)

35 N·m

Rated Power (Representative Variant)

3.3 kW @ 900 rpm

Input Power

360-460 V, 50/60 Hz, Three-phase

Speed Range

100-900 rpm

Efficiency

Up to 88.3% @ 900 rpm (system total efficiency, including drive losses)

Energy Efficiency Class

IE5 (IEC 60034-30-1)

Protection Class

IP55-IP66

Control Modes

Modbus RS485, 0-10 V, PWM

Protection Functions

Overcurrent, rotor blockage, phase loss, IPM over-temperature, reverse wind startup

Ambient Temperature

-25°C to +40°C

Cooling Method

TEAO, minimum air speed 3 m/s

Mounting

B3 standard; B5 / B14 optional; removable feet

Shaft Extension

Diameter 38 mm

Certification / Warranty

CE / ETL; 12 months (18 months overseas)

Performance Advantages of the T132ECI Integrated Drive EC Motor

Low-Speed Direct-Drive Torque

The T132ECI delivers 35 N·m rated torque from 100 to 900 rpm, allowing a large-diameter axial or centrifugal impeller to mount directly on the shaft. This removes the gearbox or belt drive used in conventional fan trains and reduces the number of wear parts.

Measured IE5 Efficiency at Low Speed

At 900 rpm the motor records 88.3% peak system total efficiency, measured at the rated point including drive losses. Low-speed, high-load duty is where AC induction motors show their lowest efficiency; the T132ECI is classified IE5 under IEC 60034-30-1 in this range.

Integrated Drive with Group Control

With the drive built in, each motor needs one power and one control cable. It accepts 0-10 V, PWM, and Modbus RS485 control, and several motors can share one RS485 bus for group control of livestock house ventilation or cold storage air circulation.

Built-In Protection for Unattended Operation

The drive provides overcurrent, rotor blockage, phase loss, IPM over-temperature, and reverse wind startup protection. Rated S1 continuous duty with a brushless rotor, it supports unattended fan fleets with limited scheduled maintenance.

T132ECI

Installation and Mounting for the T132ECI Integrated Drive EC Motor

Mounting Configurations

B3 foot mounting is standard; B5 and B14 flange mounting are optional and the feet are removable. Dimensions follow IEC standards, so an IEC 132 frame AC motor can be replaced in position without an adapter plate; the series supports all IEC mounting arrangements.

Shaft and Outline Dimensions

The shaft extension is 38 mm in diameter with an M12 threaded shaft end. The table lists the outline and mounting dimensions from the installation drawing. Each motor includes a 1.5 m power cable and a 1.5 m control cable; 2D and 3D drawings are available on request.

Dimension

Value

Overall Length

461 mm

Frame Outer Diameter

Ø220 mm

Shaft Extension to Hub Face

70 mm

Shaft Extension to Flange Face

80 ±0.5 mm

Flange Face to Front Foot Hole Center

89 ±1.5 mm

Foot Hole Spacing

140 mm

Rear Foot Hole Center to Rear Foot Edge

12 mm

Shaft Center Height

132 mm

Flange Mounting Hole Circle

216 mm

Flange Face Diameter

260 mm

Cooling and Environmental Ratings

The T132ECI uses TEAO cooling with a minimum 3 m/s air speed. IP55 protection is standard and upgradable to IP66, and the standard ambient range is -25°C to +40°C, with customized models available outside it.

Applications for the T132ECI Integrated Drive EC Motor

The T132ECI is selected for high-torque, low-speed fan and pump duties: large livestock ventilation fans, cold storage fans, data center cooling, industrial fans, dust removal equipment, and water pumps. Its IEC-standard dimensions also support IEC 132 frame AC motor retrofits.

Customization and OEM Services for the T132ECI Integrated Drive EC Motor

Voltage, speed, shaft diameter, mounting arrangement, control method, cable length, and connector type can be customized, with OEM manufacturing available. Bearing brands can be specified, and custom models are offered for ambient temperatures outside -25°C to +40°C.

FAQ About the T132ECI Integrated Drive EC Motor

Does the T132ECI integrated drive EC motor include a VFD?

Yes. The drive is integrated in the motor housing, so no external VFD, drive cabinet, or shielded cable is required.

What torque and speed range does the T132ECI provide?

The representative variant is rated 35 N·m over a 100-900 rpm constant-torque range, with 3.3 kW rated power at 900 rpm.

Can the T132ECI drive a large fan without a gearbox?

Yes. Its 35 N·m low-speed output supports direct coupling of large-diameter impellers, removing the gearbox or belt from the fan train.

What supply voltage does the T132ECI require?

It operates from a 360-460 V, 50/60 Hz, three-phase supply.

Can the T132ECI replace an IEC 132 frame AC motor?

Yes. IEC-standard dimensions, B3 foot mounting, and B5/B14 flange options allow in-place replacement without an adapter plate.

What certifications and warranty apply?

It carries CE and ETL certifications. The warranty is 12 months from receipt domestically and 18 months from shipment for overseas orders.
