T71EC

As an OEM manufacturer of EC motor platforms up to 30 kW, we engineer the T71EC for space-constrained ventilation equipment. Built on an IEC 71 frame at 139 mm diameter, this 0.45 kW brushless PM motor reaches 87.6% system efficiency including VFD losses. It accepts single-phase 200-277 V input, carries CE and ETL certifications, and supports direct IEC 71 AC motor replacement without adapter plates.
Availability:
Quantity:
Product Description

Overview of the T71EC EC Motor

The T71EC EC motor is the most compact EC motor in the T Series, built on an IEC 71 frame. With a frame diameter of approximately 139 mm and an overall length of 249 mm, it delivers 0.45 kW at 3600 rpm within a footprint designed for space-constrained installations. As an EC (externally controlled) permanent magnet synchronous motor, it operates with an external variable frequency drive (VFD), allowing system integrators to select their preferred drive brand and configure multi-motor setups from a single drive unit. The motor accepts single-phase 200-277 V input at 50/60 Hz, suitable for residential and light commercial sites without three-phase power.

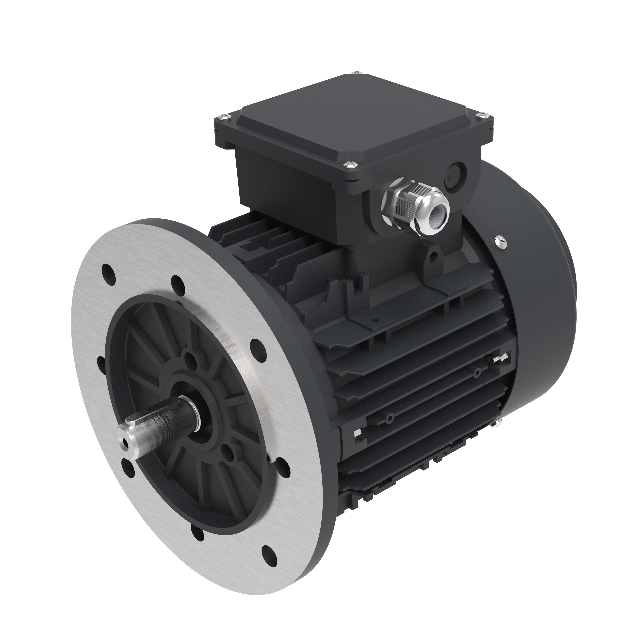

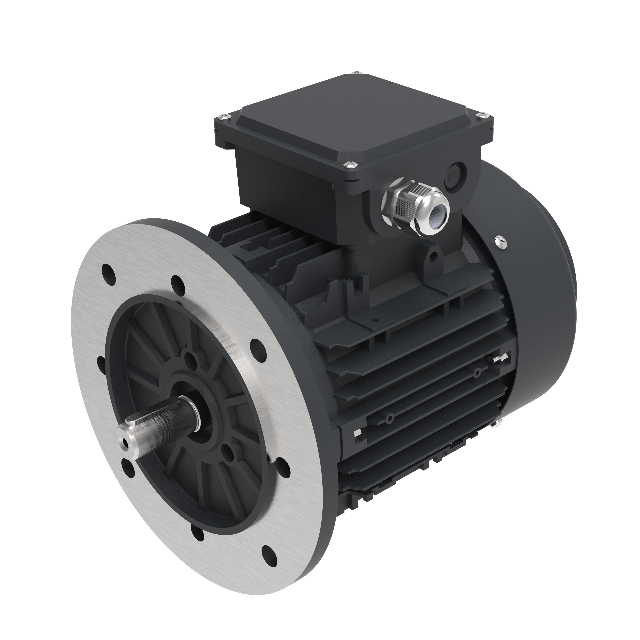

T71EC EC Motor

Key Specifications of the T71EC EC Motor

Item

Value

Rated Torque

1.2 N·m

Rated Power

0.45 kW @ 3600 rpm

Speed Range

600-3600 rpm

Input Power

200-277 V, 50/60 Hz, Single-phase

Rated Current

3.2 A @ 3600 rpm

Efficiency

87.6% @ 3600 rpm (system total efficiency, including VFD losses)

Protection Rating

IP55 (upgradable to IP66)

Insulation / Duty

Class F/B insulation, S1 continuous duty

Ambient Temperature

-25°C to +40°C

Cooling Method

TEAO, minimum air speed 1 m/s

Mounting

B3 standard; B5 / B14 optional; removable feet

Shaft Extension

Diameter 14 mm, shaft length 22 mm, keyway 5 mm

Certification

CE / ETL

Performance Advantages of the T71EC EC Motor

High-Speed Output in a Compact Frame

The T71EC EC motor operates across a speed range of 600 to 3600 rpm, enabling it to drive small-diameter impellers in air purification units, fresh air systems, and cabinet cooling fans. The IEC 71 frame is the smallest frame size in the T Series EC platform.

Measured System Efficiency

At the rated operating point of 3600 rpm, the T71EC EC motor achieves a measured system total efficiency of 87.6%, including VFD losses. The EC platform on which the T71EC is based reaches IE5+ energy efficiency levels, with platform motor-only efficiencies ranging from 90% to 96%.

Single-Phase Power Compatibility

The T71EC EC motor accepts single-phase 200-277 V input, eliminating the need for three-phase power infrastructure in retrofit projects and distributed installations such as residential HVAC and small commercial ventilation.

Brushless Permanent Magnet Construction

The permanent magnet synchronous design uses no brushes or wearable commutator components, reducing scheduled maintenance requirements compared with brushed DC motors and shaded-pole AC motors.

Installation and Mounting for the T71EC EC Motor

Mounting Configurations

The T71EC EC motor is supplied with B3 foot mounting as standard, with B5 and B14 flange mounting available as options. The feet are removable to support flexible integration into custom enclosures. All mounting dimensions conform to IEC 71 frame standards, allowing the T71EC to directly replace existing IEC 71 frame AC motors in energy-saving retrofit projects without an adapter plate.

Shaft and Physical Dimensions

The shaft extension has a diameter of 14 mm, a length of 22 mm, and a 5 mm keyway, with an M5 threaded hole at the shaft end. The shaft center height is 71 mm and the foot hole spacing is 112 mm. The motor is supplied with 1.5 m power and 1.5 m control cables as standard, and 2D/3D installation drawings are available on request.

Cooling and Environmental Ratings

The T71EC EC motor uses TEAO (Totally Enclosed Air Over) cooling, requiring a minimum air speed of 1 m/s over the motor surface. It carries an IP55 protection rating as standard, upgradable to IP66. The standard operating ambient temperature range is -25°C to +40°C; customized models are available for temperatures outside this range.

Applications for the T71EC EC Motor

The T71EC EC motor is designed for low-power, space-constrained fan and blower applications, including air purification equipment, fresh air ventilation systems, cabinet cooling fans, small HVAC fans, and light commercial ventilation units. Its IEC-standard mounting dimensions also support energy-saving retrofits replacing existing IEC 71 frame AC induction motors.

Customization and OEM Services for the T71EC EC Motor

Full-dimensional customization is available, including voltage, speed, shaft diameter, mounting method, control method, cable length, and connector type. OEM manufacturing services are offered for industrial clients and enterprise customers. The bearing brand can also be specified according to customer requirements.

FAQ About the T71EC EC Motor

What distinguishes an EC motor from an ECI motor?

An EC motor requires an external variable frequency drive (VFD) to operate, with a maximum platform power of 30 kW. An ECI motor has the VFD integrated inside the motor housing, with a maximum platform power of 5 kW. The T71EC is an EC motor and must be paired with an external VFD.

Does the T71EC include a built-in VFD?

No. The T71EC EC motor is an EC-type motor that requires an external VFD. System integrators may select their preferred VFD brand, and one VFD can be configured to drive multiple T71EC motors.

Can the T71EC replace an existing IEC 71 frame AC motor?

Yes. The T71EC EC motor mounting dimensions conform to IEC 71 frame standards, including B3 foot mounting with 112 mm foot hole spacing and 71 mm shaft center height. It can directly replace an IEC 71 frame AC motor without an adapter plate, provided an external VFD is installed.

What is the warranty period and what certifications does the T71EC hold?

The warranty is 12 months from the date of receipt for domestic orders and 18 months from the shipment date for overseas orders. The T71EC EC motor carries CE and ETL certifications and is sold to markets in Europe, North America, South America, and Australia.
