T71ECI

Industrial fan and pump OEMs replace aging AC motors with the T71ECI, an IE5 permanent magnet motor with a built-in drive. Rated 0.19-1 kW at 200-240 V single phase, it eliminates external VFD wiring. IP55 protection and -25 to 40°C operation suit dusty equipment rooms. Manufactured by Motor and Drive since 2013, backed by ISO 9001:2015, CE/ETL certification and a 450-strong team.
Availability:
Quantity:
Product Description

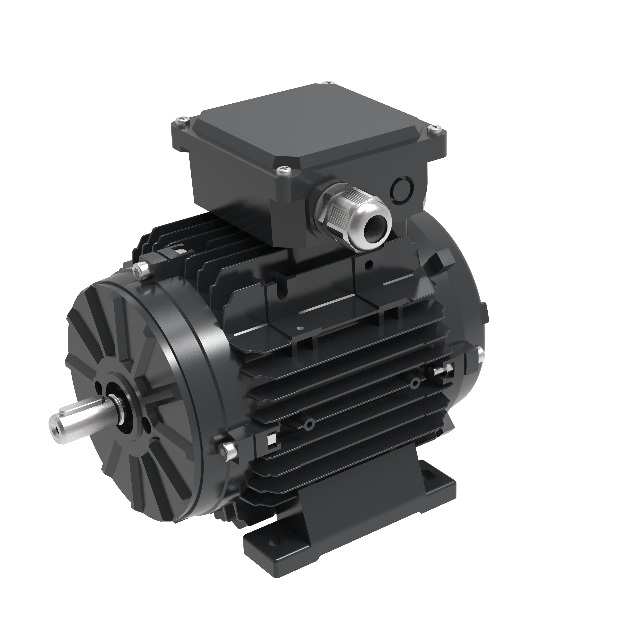

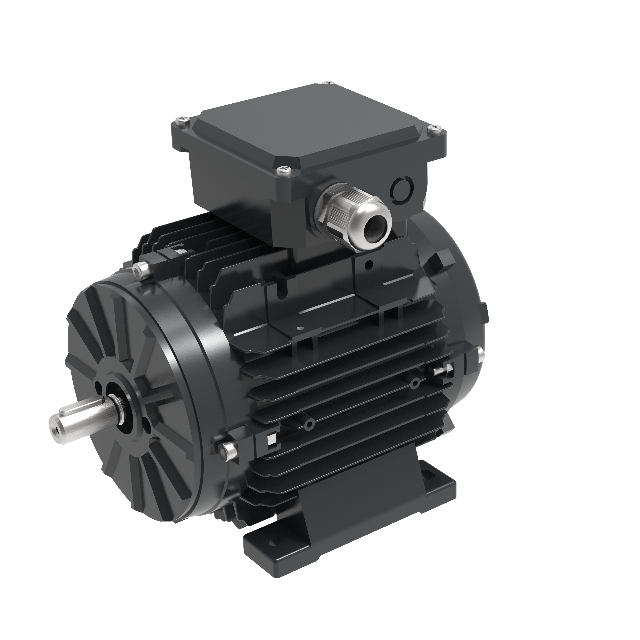

Overview of the T71ECI Integrated Drive EC Motor

The T71ECI integrated drive EC motor is the most compact integrated-drive model in the T Series. It pairs an IEC 71 frame permanent magnet synchronous motor with a variable frequency drive built into the housing and runs from a single-phase 200-277 V, 50/60 Hz supply. The series covers 0.19-1.0 kW; the representative variant is rated 1.0 kW at 3000 rpm with 3.2 N·m torque and a 600-3000 rpm range. With a frame diameter around 136 mm and 249 mm overall length, it is built for space-limited equipment. It meets IE5 per IEC 60034-30-1 and reaches 88.6% peak system efficiency at 3000 rpm including drive losses.

Key Specifications of the T71ECI Integrated Drive EC Motor

Item

Value

Power Range

0.19-1.0 kW (IEC 71 frame)

Rated Torque (Representative Variant)

3.2 N·m

Rated Power (Representative Variant)

1.0 kW @ 3000 rpm

Input Power

200-277 V, 50/60 Hz, Single-phase

Speed Range

600-3000 rpm

Efficiency

Up to 88.6% @ 3000 rpm (system total efficiency, including drive losses)

Energy Efficiency Class

IE5 (IEC 60034-30-1)

Protection Class

IP55-IP66

Control Modes

Modbus RS485, 0-10 V, PWM

Protection Functions

Overcurrent, rotor blockage, phase loss, IPM over-temperature, reverse wind startup

Ambient Temperature

-25°C to +40°C

Cooling Method

TEAO, minimum air speed 1 m/s

Mounting

B3 standard; B5 / B14 optional; removable feet

Shaft Extension

Diameter 14 mm, length 22 mm, keyway 5 mm

Certification / Warranty

CE / ETL; 12 months (18 months overseas)

Performance Advantages of the T71ECI Integrated Drive EC Motor

Compact Integrated-Drive Footprint

The smallest integrated-drive motor in the T Series, the T71ECI is 249 mm long with a frame diameter around 136 mm. It fits equipment with limited motor space, including air purifiers, fresh air units, cabinet cooling fans, and small HVAC fans.

Single-Phase Supply

It runs directly from a single-phase 200-277 V, 50/60 Hz supply, so sites without three-phase infrastructure need no electrical upgrade.

Measured IE5 Efficiency

At 3000 rpm it reaches 88.6% peak system total efficiency including drive losses and is classified IE5 under IEC 60034-30-1. Manufacturer comparison data indicates 15-20% energy savings against IE2/IE3 AC motors in comparable fan and pump duty.

Controls, Protection, and Low Maintenance

It supports 0-10 V, PWM, and Modbus RS485 control and includes overcurrent, rotor blockage, phase loss, IPM over-temperature, and reverse wind startup protection. The brushless design has no wearable commutator parts.

T71ECI

Installation and Mounting for the T71ECI Integrated Drive EC Motor

Mounting Configurations

B3 foot mounting is standard; B5 and B14 flange mounting are optional and the feet are removable. IEC 71 frame dimensions allow direct in-place replacement of an IEC 71 AC motor without an adapter plate.

Shaft and Outline Dimensions

The shaft extension is 14 mm in diameter and 22 mm long with a 5 mm keyway and an M5 shaft-end fixing hole. The table lists dimensions from the installation drawing. A 1.5 m power cable and 1.5 m control cable are standard; 2D and 3D drawings are available on request.

Dimension

Value

Overall Length

249 mm

Frame Outer Diameter

Ø136 mm

Total Height

173 mm

Shaft Center Height

71 mm

Shaft Extension to Hub Face

22 mm

Shaft Extension to Flange Face

30 mm

Foot Hole Spacing

112 mm

Foot Width

140 mm

Cooling and Environmental Ratings

The T71ECI uses TEAO cooling with a minimum 1 m/s air speed. IP55 is standard and upgradable to IP66; the standard ambient range is -25°C to +40°C, with customized models available beyond it.

Applications for the T71ECI Integrated Drive EC Motor

The T71ECI is selected for compact, low-power fan and pump equipment: air purification and fresh air units, cabinet cooling fans, small livestock ventilation, HVAC fans, and compact water pumps. The integrated drive removes external VFD wiring, and the single-phase supply supports retrofit projects and distributed installations. Its IEC-standard dimensions also support IEC 71 frame AC motor retrofits.

Customization and OEM Services for the T71ECI Integrated Drive EC Motor

Voltage, speed, shaft diameter, mounting, control method, cable length, and connector type can be customized, with OEM manufacturing available. The control inputs connect to standard EC fan controllers and building management systems. Bearing brands can be specified, and custom models are offered for ambient temperatures outside -25°C to +40°C.

FAQ About the T71ECI Integrated Drive EC Motor

Does the T71ECI integrated drive EC motor include a VFD?

Yes. The drive is integrated in the housing, so no external VFD, drive cabinet, or shielded cable is required.

What are the power and speed ranges of the T71ECI EC motor?

The series covers 0.19-1.0 kW. The representative variant is rated 1.0 kW at 3000 rpm with 3.2 N·m torque and a 600-3000 rpm range.

Can the T71ECI EC motor run on single-phase power?

Yes. It accepts a 200-277 V, 50/60 Hz, single-phase supply and needs no three-phase infrastructure.

Can the T71ECI EC motor replace an IEC 71 frame AC motor?

Yes. IEC mounting dimensions, 112 mm foot hole spacing, and 71 mm shaft center height allow in-place replacement without an adapter plate.

What efficiency and class does it achieve?

It reaches 88.6% peak system efficiency including drive losses and is classified IE5 under IEC 60034-30-1.

What certifications and warranty apply?

It carries CE and ETL certifications. The warranty is 12 months from receipt domestically and 18 months from shipment for overseas orders.
