T90ECI

As an OEM manufacturer of EC/ECI permanent magnet motor platforms, the T90ECI integrated VFD motor is built for sites without three-phase power. The T90ECI ECI motor pairs an IEC 90 frame permanent magnet synchronous motor (PMSM) with an integrated drive, runs on single-phase 200-277 V, and delivers up to 2.2 kW. It outputs 1.57 kW and 5 N·m at 3000 rpm, with measured system efficiency up to 88.0% including drive losses. CE and ETL certified, the T90ECI integrated drive motor matches IEC 90 dimensions for direct AC motor replacement.
Availability:
Quantity:
Product Description

Overview of the T90ECI Integrated VFD Motor

With the drive built in, the T90ECI integrated VFD motor needs no external VFD to mount, wire, or commission. It runs on single-phase 200-277 V, 50/60 Hz, suiting retrofits and sites without three-phase infrastructure. The T90ECI ECI motor covers 0.2-2.2 kW at 600-3000 rpm constant torque and meets EU IE5 under IEC 60034-30-1, equivalent to China Class 1; the ECI platform reaches 5 kW.

Key Specifications of the T90ECI Integrated VFD Motor

Item

Value

Power Range

0.2-2.2 kW (IEC 90 frame)

Rated Torque (Representative Variant)

5 N·m

Rated Power (Representative Variant)

1.57 kW @ 3000 rpm

Input Power

200-277 V, 50/60 Hz, Single-phase

Speed Range

600-3000 rpm

Efficiency

Up to 88.0% @ 3000 rpm (system total efficiency, including VFD losses)

Energy Efficiency Class

IE5 (IEC 60034-30-1)

Protection Rating

IP55-IP66

Control Modes

Modbus RS485, 0-10 V, PWM

Protection Functions

Overcurrent, rotor blockage, phase loss, IPM over-temperature, reverse wind startup

Ambient Temperature

-25°C to +40°C

Cooling Method

TEAO, minimum air speed 3 m/s

Mounting

B3 standard; B5 / B14 optional; removable feet

Shaft Extension

Diameter 24 mm, shaft extension 50.0 mm, keyway 8 mm

Certification / Warranty

CE / ETL; 12 months domestic (18 months overseas)

Performance Advantages of the T90ECI Integrated VFD Motor

Single-Phase Supply Without Three-Phase Infrastructure

On single-phase 200-277 V up to 2.2 kW, the T90ECI integrated VFD motor lets commercial users add variable-speed fan drives in small livestock buildings, HVAC rooms, and retrofits lacking three-phase service.

IE5 Efficiency With the Drive Included

At 3000 rpm the T90ECI ECI motor reaches measured system efficiency up to 88.0%, including VFD losses, and is classified IE5 under IEC 60034-30-1. In manufacturer comparisons it uses 15-20% less energy than conventional AC motors in equivalent fan and pump duties.

Fewer Installation Steps With an Integrated Drive

The T90ECI integrated drive motor arrives as one unit with one cable set, so business buyers skip external VFD mounting, drive setup, and shielded panel-to-fan cables.

Constant-Torque Range and Standard Control Signals

The T90ECI integrated VFD motor regulates over 600-3000 rpm for common fan and pump duties and accepts 0-10 V, PWM, and Modbus RS485 from standard EC fan controllers; five protections support unattended operation.

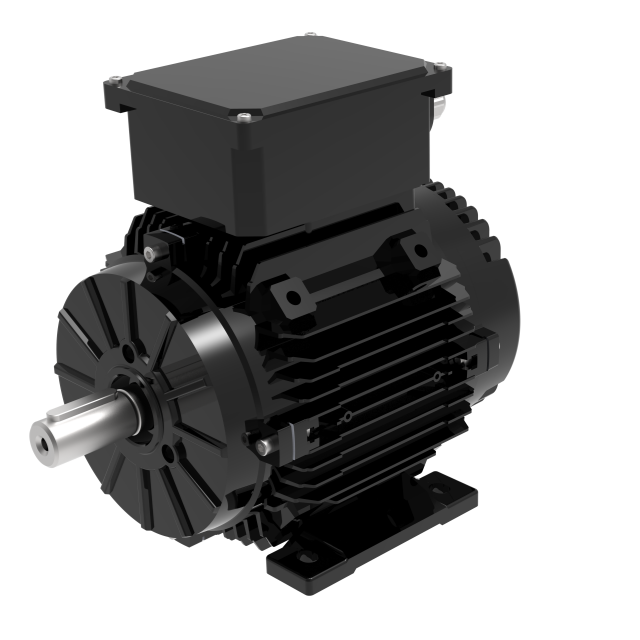

T90ECI Integrated VFD Motor

Installation and Mounting for the T90ECI Integrated VFD Motor

Mounting Configurations and IEC 90 Replacement

B3 foot mounting is standard on the T90ECI ECI motor, with optional B5/B14 flanges and removable feet; the T Series supports all IEC mounting types (B3, B30, B14, B5, B34, B35, B14B, B5R), and IEC 90 dimensions allow direct AC replacement without an adapter plate.

Shaft, Terminal Box and Outline Dimensions

The 24 mm shaft extension is 50.0 mm long, with an 8 mm keyway, 40 mm key length, and M8 threaded end; center height is 90 mm, foot hole spacing 140 mm, and the terminal box has 2 × M16 × 1.5 cable entries.

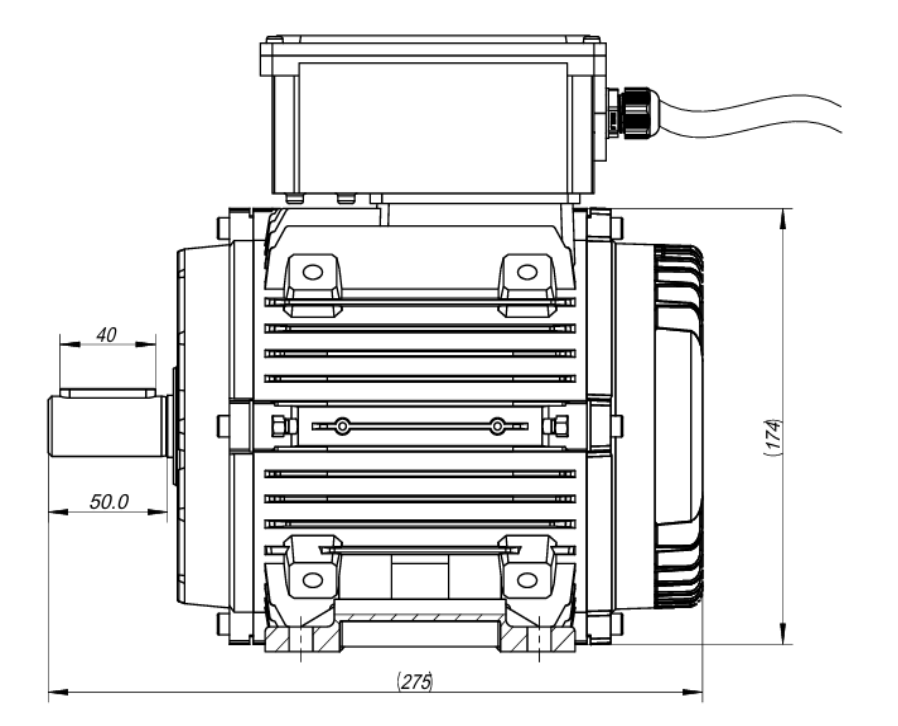

Dimension (Outline Drawing)

Value

Key length (upper shaft callout)

40 mm

Shaft extension length

50.0 mm

Overall length (reference dimension)

(275) mm

Motor body vertical dimension (reference)

(174) mm

Figures are in millimetres; bracketed values are reference dimensions, and total height with the terminal box is 249 mm. Verify the certified drawing first.

Cooling, Cables and Operating Environment

The T90ECI integrated VFD motor uses TEAO cooling (minimum 3 m/s air speed), includes 1.5 m power/control cables, and carries IP55 protection (upgradable to IP66) for -25°C to +40°C; custom models and drawings are on request.

Applications for the T90ECI Integrated VFD Motor

The T90ECI integrated drive motor suits compact single-phase fans and pumps: small-building livestock ventilation, HVAC and fresh air fans, air purification units, cabinet cooling, cold storage and small industrial fans, water pumps, and IEC 90 AC motor retrofits.

Customization and OEM Services for the T90ECI Integrated VFD Motor

Voltage, speed, shaft diameter, mounting, control mode, cables, connectors, and bearing brand are customizable on the T90ECI ECI motor, with OEM for equipment brands. Enterprise customers can send duty points to our pre-sales team; customized T90ECI integrated VFD motors cover ambients outside -25°C to +40°C.

FAQ About the T90ECI Integrated VFD Motor

Can the T90ECI integrated VFD motor run on single-phase power?

Yes. The representative T90ECI ECI motor runs on 200-277 V, 50/60 Hz single-phase and delivers up to 2.2 kW without three-phase infrastructure.

What is the difference between the T90ECI ECI motor and an EC motor?

An EC motor needs an external VFD and the EC platform reaches 30 kW; the T90ECI integrated VFD motor has the drive built in and the ECI platform reaches 5 kW, saving space and wiring.

What speed range and control signals does the T90ECI integrated VFD motor support?

The T90ECI ECI motor provides constant-torque regulation over 600-3000 rpm and accepts 0-10 V, PWM, and Modbus RS485 from EC fan controllers and building management systems.

Can the T90ECI integrated VFD motor replace an existing IEC 90 frame AC motor?

Yes. The T90ECI ECI motor follows IEC 90 dimensions: B3 foot mounting standard, B5/B14 flanges optional, a 24 mm M8 shaft, and removable feet; no adapter plate is needed. 2D/3D drawings are on request.
