Selecting motor drives involves much more than simply matching voltage and current ratings. In modern industrial automation, the drive ultimately establishes the ceiling for dynamic response. It dictates system positioning accuracy and limits seamless network integration. Engineers face a distinct dichotomy when evaluating different motion requirements across facilities. Motorized rollers prioritize high efficiency and compact integration for fast-paced intralogistics applications. Conversely, direct-drive linear motors demand ultra-low latency and sub-micron feedback control to manage precision stages in demanding CNC environments.
This article offers a vendor-neutral, technical framework to guide your engineering selection process. We will explore how to evaluate specific performance metrics and mitigate hidden implementation risks. You will learn how to confidently shortlist a reliable motor drives manufacturer based on your system's complete operational requirements rather than just looking at isolated datasheet specifications.

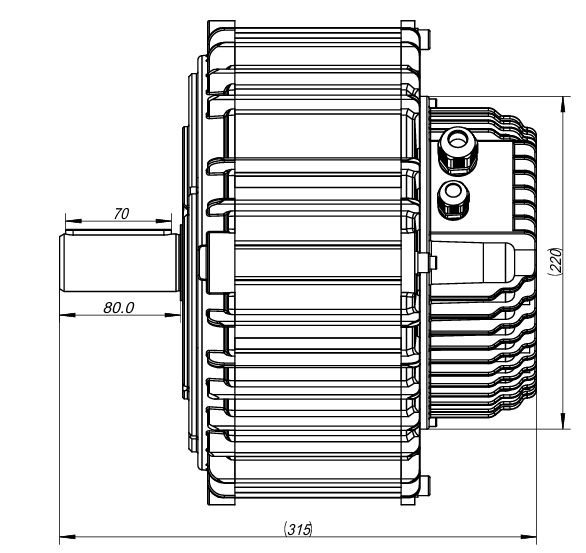

Every automation project imposes unique demands on motion control hardware. You cannot evaluate drives effectively without clearly defining the mechanical and environmental application envelope first.
Modern distribution centers rely heavily on motorized rollers. These systems prioritize consistent velocity control over extreme sub-micron precision. You need high starting torque to move heavy pallets from a dead stop. Once moving, continuous reliable operation becomes the primary focus.
Form factor constraints dictate much of the hardware selection here. You typically need decentralized drives mounted directly on or near the conveyor frame. This requires robust IP-rated enclosures, often IP54 or IP65, to protect against dust and moisture. Control complexity remains relatively moderate. Engineers generally rely on standard PI or PID loops. You can often achieve desired performance using basic hall-sensor feedback. In some highly optimized cases, sensorless vector control eliminates external feedback wiring entirely.
Direct-drive linear applications represent the opposite end of the motion spectrum. These systems manage precision CNC machining, semiconductor wafer inspection, and metrology. The engineering focus shifts drastically toward high dynamic response. You must achieve zero-backlash positioning and execute incredibly rapid acceleration and deceleration profiles.
Feedback necessity becomes absolute. The mechanical system relies entirely on high-resolution encoder protocols. You will frequently work with open-standard interfaces like BiSS-C, EnDat, or Sin/Cos for precise position loops. Advanced control features become mandatory. You require drives capable of exceptionally high-frequency current loop updates, typically exceeding 16kHz. Furthermore, these drives must process advanced feed-forward friction algorithms and execute real-time cogging compensation to maintain perfectly smooth motion profiles.
Comparing basic spec sheets rarely reveals how a drive performs under real-world stress. You must dig into specific technical dimensions to ensure reliable system performance.
Engineers often misunderstand current ratings. You must distinguish clearly between continuous current (RMS) and peak or burst current. Direct-drive linear stages often experience severe static friction (stiction). They demand massive burst currents for fractions of a second to initiate movement. If your drive lacks sufficient peak current overhead, the stage will lag or stall during acceleration.
Thermal derating assumptions require careful scrutiny. High-performance drives generate substantial heat. You must understand how ambient temperature limits and cabinet ventilation impact the manufacturer's stated current ratings. A drive rated for 20 amps continuous at 25°C might barely deliver 12 amps inside a sealed 45°C control cabinet.
Encoder versatility plays a massive role in hardware flexibility. You must evaluate whether the drive requires proprietary hardware or readily accepts universal open-standard feedback protocols. Locking into proprietary encoders limits future upgrade paths.
Update rates define control rigidity. You must assess the cycle times for current, velocity, and position loops. A faster current loop directly translates into stiffer motor control and faster settling times after a disturbance. When you integrate high-performance motor drives, verifying these sub-millisecond update rates ensures your system meets its dynamic targets.
Modern automation demands embedded safety features directly on the drive level to protect operators and equipment.
Functional Safety Profile Summary
| Safety Function | Mechanism of Action | Typical Application Scenario |
|---|---|---|
| STO (Safe Torque Off) | Removes power generating torque immediately. | Emergency stop buttons, basic safety doors. |
| SS1 (Safe Stop 1) | Actively ramps down speed, then triggers STO. | High-inertia loads like large linear gantries. |
| SLS (Safely-Limited Speed) | Monitors motor speed and triggers fault if exceeded. | Manual machine setup or collaborative robotics. |
Standalone motion control rarely suffices in modern facilities. Machines operate as synchronized systems, placing intense demands on communication infrastructure.
The industry has moved far beyond legacy analog voltage signals and pulse-direction commands. True system synchronization requires network determinism. The fieldbus guarantees that command signals reach multiple drives at precise, predictable microsecond intervals.
Selecting the right communication protocol establishes the baseline for machine capability. You generally choose between two primary networking paradigms based on latency tolerance.
EtherCAT stands out for ultra-low latency and microsecond-level jitter. It processes data on the fly. This makes it ideal for complex multi-axis linear interpolation, such as a 5-axis CNC machine carving complex geometries. EtherCAT ensures all axes start and stop simultaneously without deviation.
PROFINET and EtherNet/IP serve different architectural needs. They excel in broader plant-level integration where millisecond latency remains perfectly acceptable. Motorized roller conveyors rely heavily on these protocols to interface easily with standard factory PLCs and warehouse management systems.
Network topology directly impacts installation complexity. You must evaluate daisy-chaining capabilities when dealing with large physical layouts. Drives with built-in Ethernet switches allow you to run a single cable from one drive to the next. This greatly reduces cabling complexity and installation time in large-scale motorized roller deployments spanning hundreds of feet.
Hardware failures rarely cause project delays. More often, engineering teams stumble over hidden integration complexities that never appear on standard marketing datasheets.
Most manufacturers heavily promote their "Auto-Tuning" capabilities. You should approach these claims with caution. The reality of auto-tuning algorithms is that they often fail spectacularly in direct-drive systems experiencing varying payloads. A linear motor moving an empty stage exhibits vastly different dynamics than one carrying a massive steel block. Auto-tuning struggles to find a stable middle ground. Because of this, you absolutely need robust manual Bode plot tools built into the drive software. These frequency response tools allow engineers to pinpoint mechanical resonances and apply precise notch filters manually.
Electrical noise causes erratic behavior that is notoriously difficult to diagnose. High-frequency Pulse Width Modulation (PWM) switching generates severe EMI.
Shielding realities become apparent quickly in compact setups. The high-frequency switching can easily induce noise onto nearby delicate sensor cables, especially within tightly packed compact linear stages. This noise corrupts encoder signals and causes position loss.
To mitigate these risks effectively, you must follow strict procedures:
Rotary systems use gearboxes to manage inertia. Direct-drive linear motors lack this mechanical advantage. You must understand how the drive handles the load-to-motor inertia ratio. When linear motors push heavy, variable loads, mismatched inertia causes severe ringing and instability. A high-quality drive processor uses advanced feed-forward control to anticipate this mass and inject the exact current needed before the position error even occurs.
Evaluating the hardware only covers half the equation. You are ultimately partnering with a technology vendor. Their internal processes will directly affect your machine's long-term viability.
Industrial machines often run for decades. Component traceability and typical product lifecycle guarantees represent critical evaluation metrics. You want to avoid expensive engineering redesigns forced by obsolete silicon chips. Ask vendors explicitly about their component sourcing strategies and end-of-life notification policies. A trustworthy manufacturer maintains pin-compatible upgrade paths across hardware generations.
Modern drives act as advanced computers. Software agility is paramount. You should investigate the frequency of firmware updates and the transparency of bug fixes. If a manufacturer hasn't updated their tuning software in five years, that signals stagnation.
Integration speed matters. Check for the availability of APIs, programming libraries, or pre-built functional blocks for major PLC ecosystems like Siemens, Beckhoff, or Rockwell. Having pre-configured function blocks saves weeks of custom programming and testing.
Never commit to volume purchasing without hands-on hardware testing. You must set specific, measurable key performance indicators (KPIs) for a physical demo unit. Do not rely on hypothetical simulations. Examples of rigorous testing criteria include:
Navigating the complex landscape of motion control requires a systematic engineering approach. The right hardware prevents your robust mechanical system from being bottlenecked by electronic limitations. You must evaluate peak currents carefully, demand high-resolution encoder support for precision tasks, and scrutinize network determinism.
We highly recommend standardizing on communication protocols and specific feedback types before issuing any formal RFQ. This prevents fragmented hardware ecosystems and simplifies future maintenance. As a practical next step, consult with your mechanical engineering team to define the absolute peak dynamic loads. Once defined, request a physical evaluation kit from your shortlisted vendors. Testing the tuning environment firsthand ensures the software matches your team's technical capabilities.
A: Servo drives use closed-loop feedback for continuous position correction, offering high dynamic response and sustained torque at high speeds. Stepper drives typically operate open-loop. They provide excellent holding torque but suffer from significant torque drop-off at higher velocities. Steppers offer simpler implementation, while servos deliver superior high-speed precision.
A: It depends on your facility layout. Centralized drives save cost but require massive cabinet space and suffer from strict cable length limits. Decentralized drives mount directly on conveyors, drastically reducing cabling. However, decentralized units require rugged IP54/IP65 ratings to survive environmental exposure.
A: Iron-core linear motors experience magnetic attraction to the track, causing jerky movement known as cogging. You must select drives equipped with specific anti-cogging algorithms. These drives map the magnetic resistance and inject counter-currents dynamically to maintain perfectly smooth motion at low speeds.
A: Yes. Many modern universal servo drives support both rotary and linear architectures. To utilize this feature, the drive must possess the correct kinematic software configurations and accept the specific encoder inputs required by the linear stage. You just switch the software profile.
