Specifying the wrong drive in industrial automation carries massive stakes. You risk premature motor failure, constant PLC communication errors, and crippling unplanned downtime. These errors disrupt entire production lines and drain maintenance budgets rapidly. Unplanned outages easily cost thousands of dollars per minute. Proper selection eliminates these avoidable mechanical bottlenecks.
Industrial automation requires moving far beyond basic horsepower matching. You must align drive capabilities tightly to specific application dynamics. Consider torque demands, smart motor control trends, and harsh environmental conditions. Modern facilities demand precision and reliability rather than simple on-off control.
This guide provides a highly evidence-based framework to evaluate, size, and select motor drives. We help engineering and procurement teams mitigate integration risks immediately. Read on to discover how to shortlist the right supply partners for your specific automation needs.
Shift your focus from product features to application outcomes. You must frame the business problem first. Do you need energy savings? Do you require precise positioning? Perhaps your goal is high-speed continuous operation. These outcomes define your entire technical path. Ignoring them leads to costly redesigns.
Load profiling remains a critical first step. You must differentiate between variable torque loads and constant torque loads.
Incorrect load profiling causes immediate stalling or excessive energy waste. You cannot afford to guess load profiles.
Factor in environmental realities daily. Ambient temperature dictates cooling requirements. Dust, moisture, and chemical exposure destroy unprotected electronics quickly. You must determine necessary enclosure types. An IP20 rating suits clean, climate-controlled cabinets. An IP66 or NEMA 4X enclosure survives aggressive washdown conditions. Heat dissipation also matters. Enclosures trap heat. You might need supplemental cooling fans.
Assess facility power supply stability closely. Power quality assumptions often lead to premature failures. Note the impact of voltage fluctuations on your equipment. Voltage sags cause drives to trip off-line unexpectedly. Determine if you need line reactors or harmonic filters. Harmonic filters mitigate dangerous electrical noise. They protect sensitive control networks nearby. Clean power guarantees stable operation.
Different applications require distinct topologies. We must match technology to the desired outcome. Selecting the wrong topology limits machine performance.
Variable Frequency Drives (VFDs) control speed and energy efficiency in AC induction motors. They represent the most common industrial solution. You must evaluate overload capability carefully. Normal Duty suits basic centrifugal pumps. Heavy Duty handles high-friction crushers and mills. Control methods also vary significantly. Scalar (V/Hz) control handles basic speed adjustments. Vector control delivers tighter torque regulation at lower speeds. Sensorless vector algorithms provide excellent speed control without physical encoders.
Servo drives suit high-precision applications perfectly. Robotics, CNC machines, and packaging lines demand them. They provide dynamic, closed-loop positioning continuously. Key evaluation dimensions include bandwidth, feedback resolution, and settling time. High bandwidth means faster response times to command changes. Low settling time increases overall machine throughput. Absolute encoders provide precise positional data immediately upon power-up.
Stepper drives offer cost-effective, predictable positioning. They usually run open-loop without encoder feedback. Assess their microstepping capabilities during selection. Proper resonance mitigation prevents missed steps during integration. Missing steps ruins part quality completely. Modern stepper drives incorporate advanced anti-resonance algorithms. They smooth out current waveforms significantly.
| Technology Type | Primary Application Profile | Control Architecture | Key Evaluation Metric |
|---|---|---|---|
| Variable Frequency (VFD) | Speed control, energy savings | Open or Closed Loop | Overload capability (Normal vs Heavy) |
| Servo System | Dynamic, precise positioning | Strictly Closed Loop | Settling time and bandwidth |
| Stepper System | Cost-effective indexing | Open Loop (Typically) | Microstepping resolution |

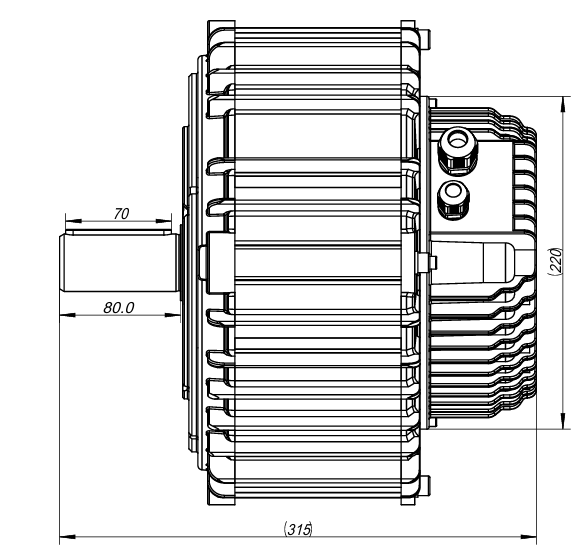

Establish a solid electrical baseline immediately. Cross-reference supply voltage and phase availability. Check if you have single-phase or three-phase power. Most importantly, check the Full Load Amperage (FLA). Rule of thumb: Always size drives based on motor FLA, not just horsepower or kW. Horsepower ratings often mislead engineers. Two different 10 HP motors can draw vastly different currents. Different efficiencies and power factors alter the current draw.
Define overload requirements clearly. Calculate required peak current duration based on startup inertia. High-inertia loads need more current to start moving. You might need 150% current for 60 seconds. Lighter loads only need 110% for 60 seconds. Specify these parameters before ordering equipment. Undersized units will trip on overcurrent faults during acceleration.
Evaluate braking and regeneration needs thoroughly. High-inertia deceleration forces energy back into the drive. The motor acts as a generator during rapid stops. This energy causes DC bus overvoltage faults. You might need dynamic braking resistors to dissipate heat. Alternatively, regenerative capabilities save energy. Regenerative units push power back onto the grid. They cost more initially but lower long-term utility bills.
Assess smart motor control and IoT trends. Automation in 2025 relies on actionable data. Look for predictive maintenance data streams. Drives should monitor temperature, vibration, and current draw. Real-time monitoring prevents catastrophic mechanical breakdowns. Edge computing analyzes micro-fluctuations instantly. It alerts maintenance teams before a bearing fails completely.
Many engineering teams face common selection pitfalls. Avoid over-specifying equipment. Buying servo precision for a simple waste conveyor wastes budget. Avoid under-specifying just to save money. Ignoring high starting torque needs causes immediate motor stalling. Find the exact balance for your load profile.
Configuration demands specific PLC integration expertise. Follow these critical integration steps:
Tuning and commissioning require patience and skill. Acknowledge the reality of auto-tuning limitations. Auto-tuning algorithms rarely perfect complex mechanical systems. They provide a decent starting point only. Emphasize manual PID loop adjustments instead. You must tune them to avoid resonance and instability. Poor tuning shakes mechanical linkages apart over time. Manual adjustments ensure smooth acceleration and deceleration ramps. Adjust the proportional, integral, and derivative gains individually.
Assess supply chain and availability rigorously. Global component shortages disrupt major projects easily. Check standard lead times carefully. Ask about local inventory buffering. You need replacement units fast when components fail. Lengthy downtimes destroy production profitability. Regional distribution hubs indicate a strong supply chain.
Evaluate the technical support structure deeply. Pre-sales support is common everywhere. Post-sales application engineering support matters much more. Look for companies offering help during the configuration phase. Responsive support saves weeks of troubleshooting downtime. You need direct access to seasoned engineers. They help diagnose stubborn PLC communication errors.
Verify compliance and certifications. Safety and regional regulations matter globally. Verify strict adherence to IEEE standards for power quality. Check for UL listing in North America. Ensure CE marking for European markets. Review safety requirements like Safe Torque Off (STO). STO prevents accidental startups during mechanical maintenance. It eliminates the need for expensive electromechanical contactors. Partnering with a fully certified motor drives manufacturer reduces legal and operational risks. Look for SIL (Safety Integrity Level) ratings to ensure maximum personnel safety.
Sizing and selecting equipment is a balancing act. You must balance electrical specifications against automation network compatibility. Environmental constraints also dictate your final choice. Never look at one metric in isolation. A holistic view prevents costly integration failures.
Do not treat these devices as pure commodities. The true cost of a mismatched drive is severe. You realize this cost during delayed commissioning. Unexpected downtime drains operational budgets rapidly. Precision matters deeply in modern industrial environments.
Take action before finalizing your procurement list. Consult directly with an application engineer. Bring a fully documented load profile to the meeting. Provide your complete PLC network architecture details. Request a comprehensive proof-of-concept review. This collaborative approach guarantees long-term mechanical success.
A: Always size based on motor Full Load Amps (FLA) to ensure sufficient current capacity under all operating conditions. Horsepower ratings do not account for variations in motor efficiency or power factor.
A: Normal duty allows minimal overload (usually 110% for 1 minute), ideal for fans/pumps. Heavy duty allows higher overload (typically 150% for 1 minute), required for conveyors and crushers.
A: Modern drives monitor voltage, current spikes, and thermal models in real-time. They send this data to centralized systems to predict bearing failures or load anomalies before catastrophic breakdowns occur.
